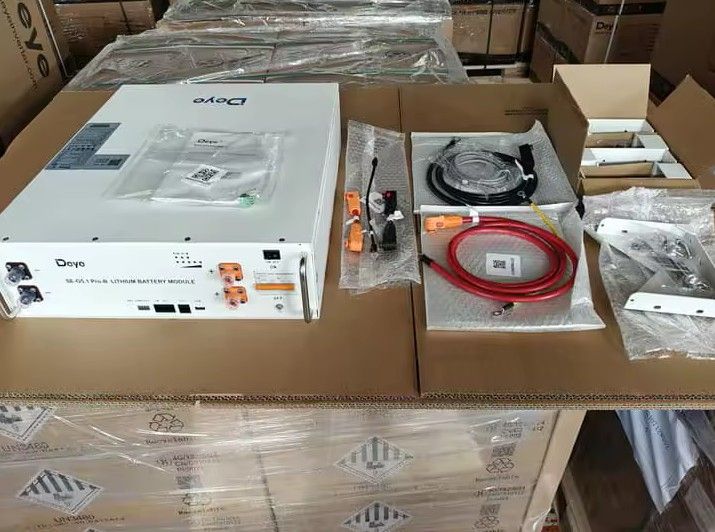

DEYE SE-G5.1PRO-B LIFEPO4 LV 5.1 kWh Battery for Solar Systems
The DEYE SE-G5.1PRO-B is a high-capacity, long-lasting LiFePO4 battery designed for solar systems, offering compatibility with all inverters on the market and a 10-year warranty.
- Code:SE-G5.1PRO-B
- Weight:45.000 Kgs
- Brand:DEYE
Quick Buy
Just 2 fields to fill in
he DEYE SE-G5.1PRO-B LIFEPO4 LV 5.1 kWh Battery is a robust and reliable energy storage solution for solar systems. With a 10-year warranty and compatibility with all inverters on the market, this battery ensures peace of mind and seamless integration.
Key specifications include:
- Nominal Capacity: 100 Ah
- Nominal Energy: 5.12 kWh
- Nominal Voltage: 51.2 V
- Standard Discharge/Charge Current: 0.5 C / 0.5 C
- Discharge/Charge Limit Voltage: 47.5 V / 57.6 V
- Maximum Discharge/Charge Current: 1.5 C / 1.5 C, Peak 2 min
- Recommended Discharge/Charge Limits: 10% - 90%
- Ambient Operating Temperature for Charging/Discharging: -10°C to 38°C
The battery's dimensions are 445 mm in width, 540 mm in depth, 133 mm in height, and it weighs 45 kg. Certified with UN38.3, IEC62619, CE, UKCA, VDE2510-50, FCC, UL1973, UL9540A, REACH, and ROHS, the SE-G5.1PRO-B ensures high safety and performance standards.
- Producer:Deye
- Warranty:10 years
- Voltage:48 V
- Operating Temperature:10 ~ +45℃
- Dimensions:244 x 445 x 500 mm
- Weight:45 kg.
- Battery Capacity:9.6
- Mounting method:Rack
- Battery type:LIFEPO4
- BMS:Интегриран
- Charge/discharge cycles:> 6000 at 80%DoD, 25°C
- Charging voltage:54 V
- Maximum charging current:100 A
- C rating charged:0,5 C
- Maximum discharge current:100 A
- Standard discharge current:50 А
- Cut-off voltage (at the end of discharge):40,5 V
- Peak output power:4,8 kW
- Recommended temperature range:10 ~ +45℃
- Nominal operating temperature:-20 ~ +60°C°C
