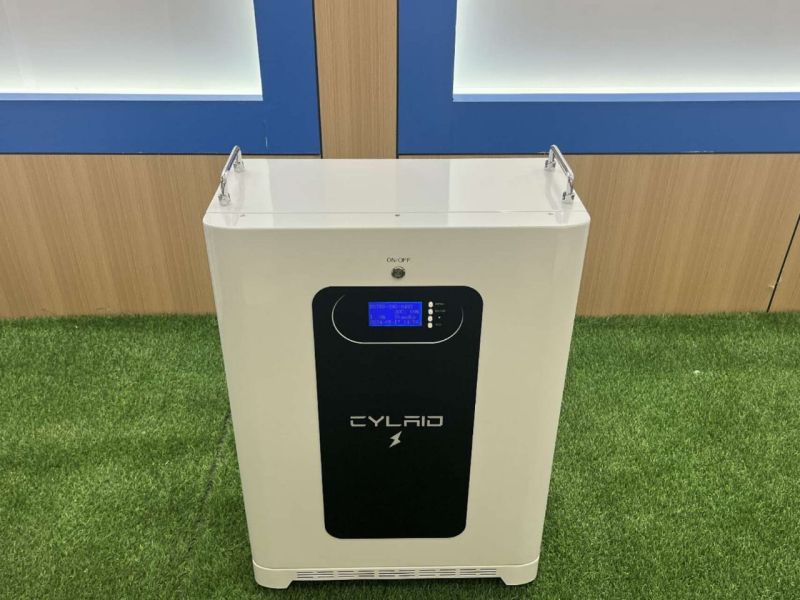

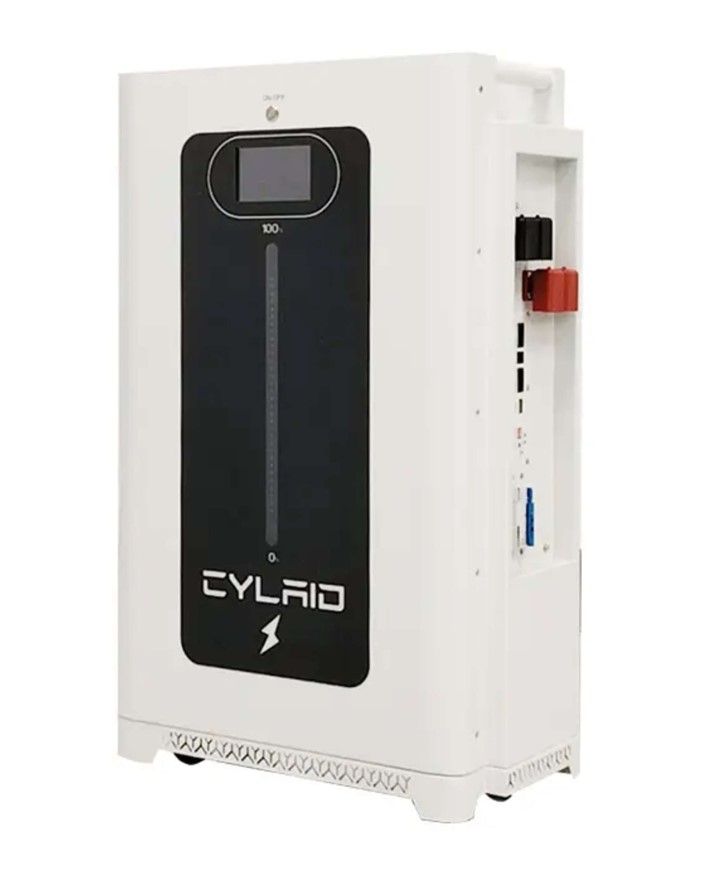

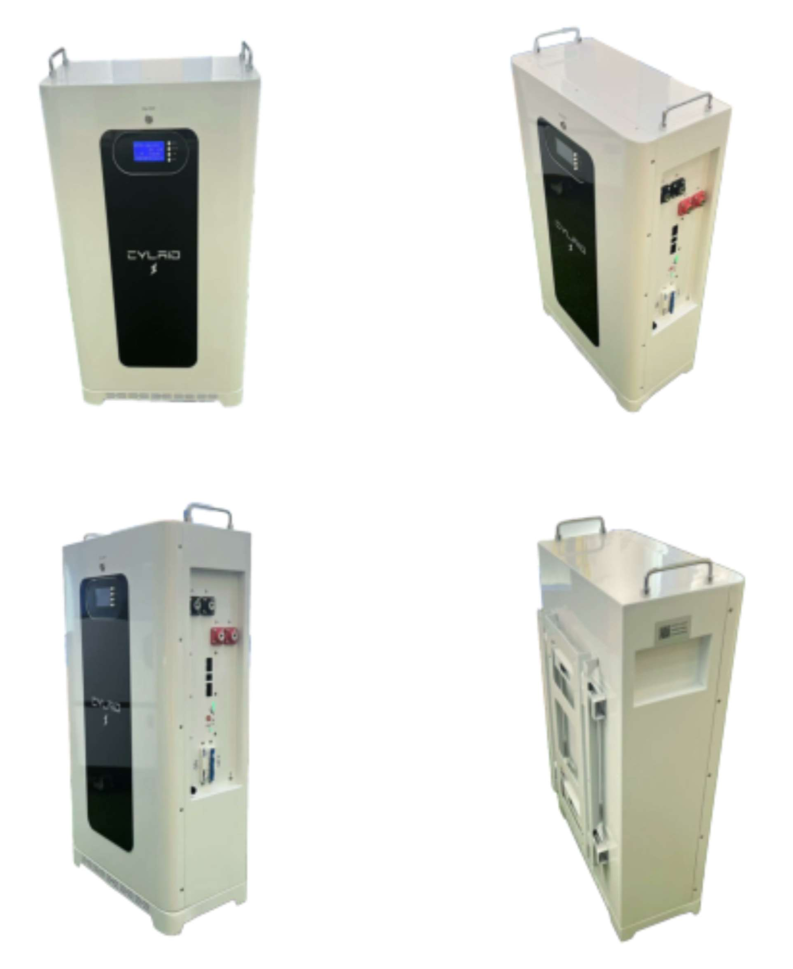

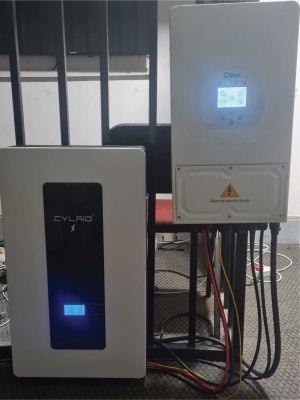

15.36kWh LiFePO4 Floor-Wall Battery CYLAID 51.2V 300Ah 6000 Cycles
- Code:CYFW51300
- Weight:127.000 Kgs
- Brand:CYLAID
Quick Buy
Just 2 fields to fill in
Battery Specifications
| Item | Specifications |
|---|---|
| Nominal Voltage | 51.2V |
| Model | 15KWH |
| Operating Voltage | 43.2V-57.6V |
| Nominal Capacity | 300AH |
| Total Energy | 15360Wh |
| Configuration | 1P16S |
| Charging Cut-off Voltage | 58.4V |
| Discharge Cut-off Voltage | 43.2V |
| Operation Temperature | -20℃～60℃ |
| Standard Charging Current | 50A |
| Max Continuous Charging Current | 200A |
| Max Continuous Discharge Current | 200A |
| Dimension | 820*500*272mm |
| Net Weight | 127KG |
- Warranty:5 years
| File | Info |
|---|---|
 Catalogue--5;11;15kWh | [PDF, 8.05 MB] |
| CE-Label | [PDF, 435.59 KB] |
| CE | [PDF, 3.25 MB] |
| Communication-Compatibility-List | [PDF, 456.62 KB] |
| Instalation-Configuration | [PDF, 320.57 KB] |
| MSDS | [PDF, 1.48 MB] |
| Products-Technical-Parameters | [PDF, 349.13 KB] |
 APK for bateries[1] | [APK, 1.77 MB] |
| Rukovodstvo_LiFePO4_Batteries | [PDF, 35.87 KB] |
