24V 100Ah LiFePO4 Battery with Bluetooth Lithtech with Heater
Price excl. tax:
€383.46
749.98лв.
Price inc. tax:
€460.16
899.99лв.
-
Code:TE24100BH
-
Weight:22.000 Kgs
Quick Buy
Just 2 fields to fill in

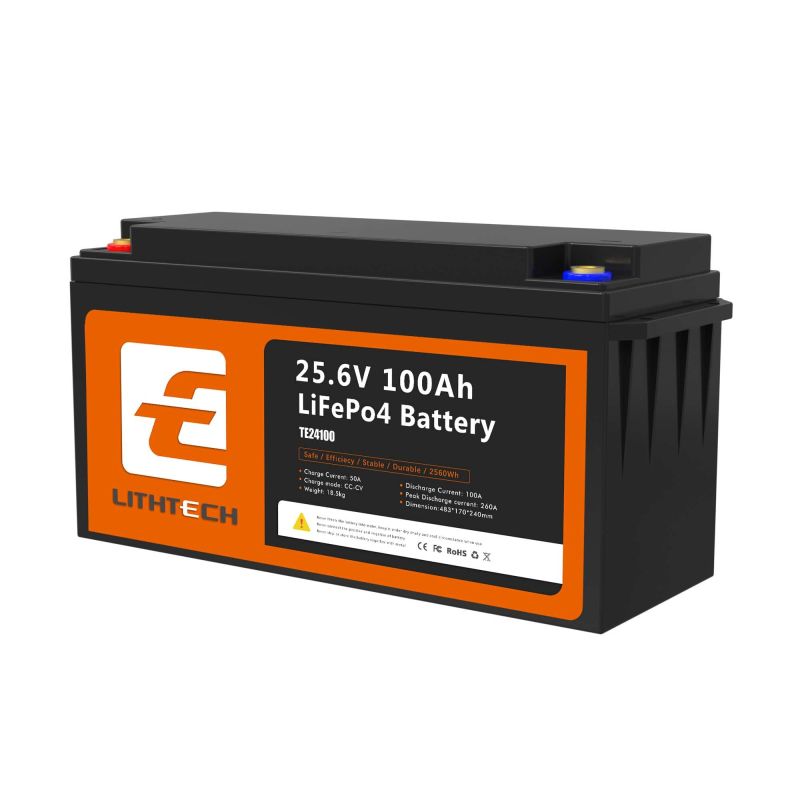

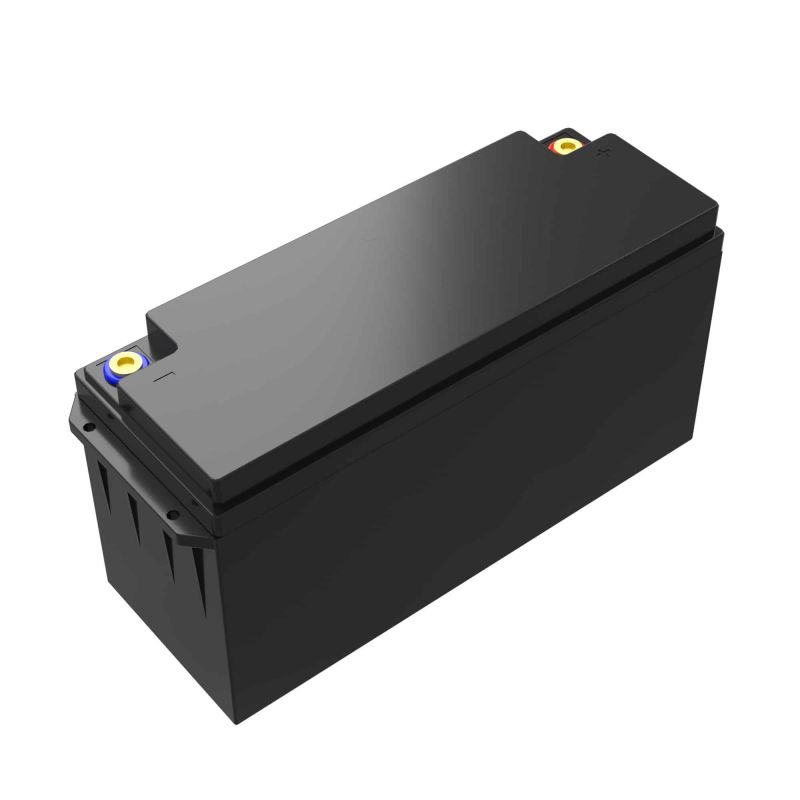

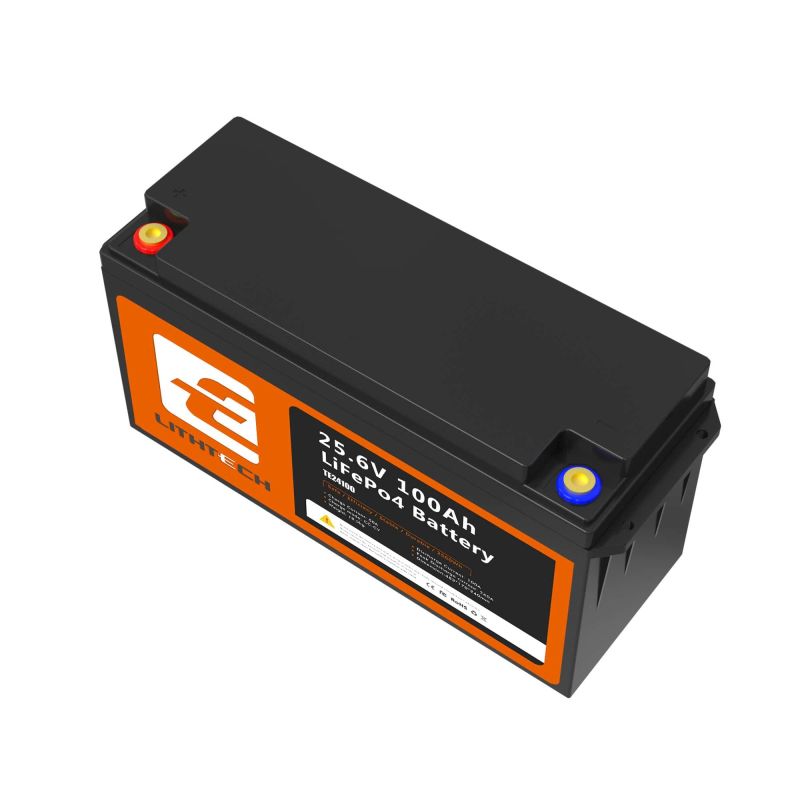

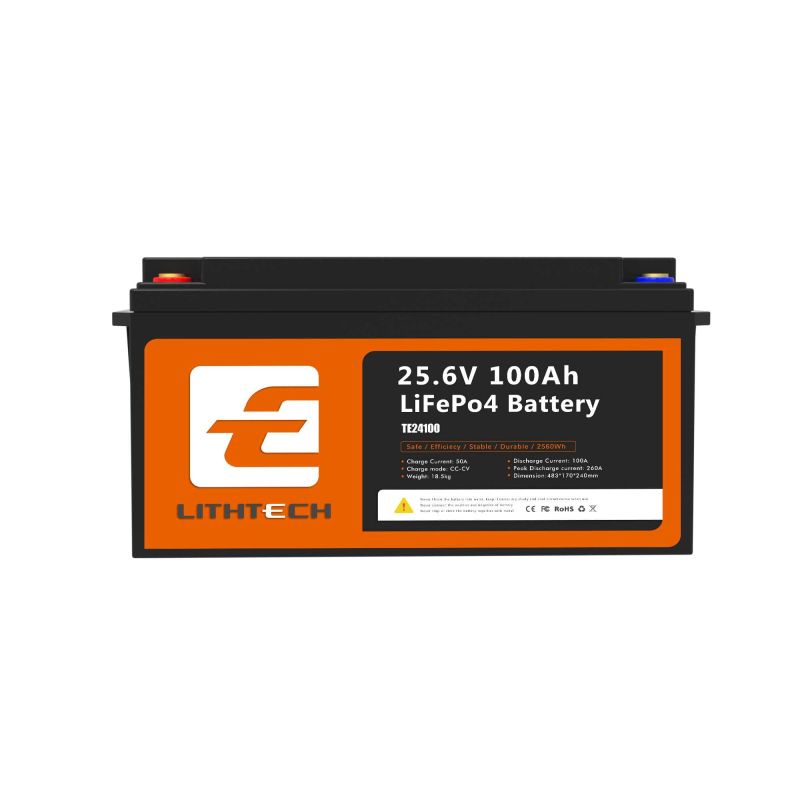

LITHTECH 25.6V 100Ah LiFePO4 Battery Pack
- Compact Design: Module automotive grade anti-vibration design.
- Support Connecting in Parallel & Series: Flexible connection options for customized applications.
- Independent Bluetooth APP: Supports both Android & iOS systems.
- High & Low Temperature Protection: Supports low-temperature charging and provides overcharge, discharge, over-voltage, and short circuit protection.
- Long Cycle Life: Over 5000 cycles
- Optional Communication: CAN/RS485/RS232 communication supported.
Specifications
| Electrical Characteristics | |
|---|---|
| Nominal Voltage | 25.6Volt |
| Nominal Capacity | 100Ah |
| Energy | 2560Wh |
| Internal Resistance | ≤45mΩ |
| Cycle Life | 5000 Cycles |
| Months Self Discharge | ≤3.5% per month at 25℃ |
| Standard Charge | |
| Charge Voltage | 28.4V~29.2V±0.2V |
| Charge Current | 50A |
| Max. Charge Current | 100A |
| Standard Discharge | |
| Discharge Current | 80A |
| Max. Continuous Current | 100A |
| Peak Current | 260A (<3S) |
| Discharge Cut-off Voltage | 17.6V |
| Environmental | |
| Charge Temperature | 0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity |
| Storage Temperature | 0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity |
| Water & Dust Resistance | IP67 |
| Mechanical | |
| Cell & Method | LFP/AL-100AH, 4S1P Plastic |
| Plastic Case | ABS |
| Dimension (L*W*H) | 487*170*240mm |
| Weight | 22kg |
| Terminal | M8 |
-
Producer:LithTech
-
Warranty:2 years
-
IP Rating:
-
Voltage:24 V
-
Output voltage:100 V
-
Weight:20 kg.
