24V 200Ah LiFePO4 Battery with Bluetooth Lithtech
Price excl. tax:
€613.56
1200.02лв.
Price inc. tax:
€736.27
1440.02лв.
-
Code:TE24200B
-
Weight:44.000 Kgs
Quick Buy
Just 2 fields to fill in

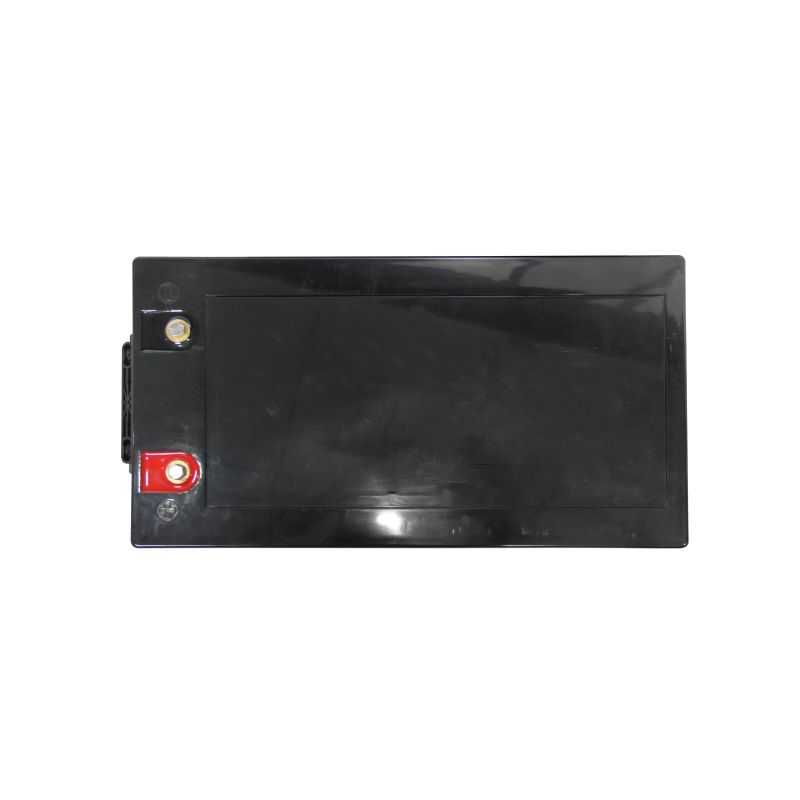

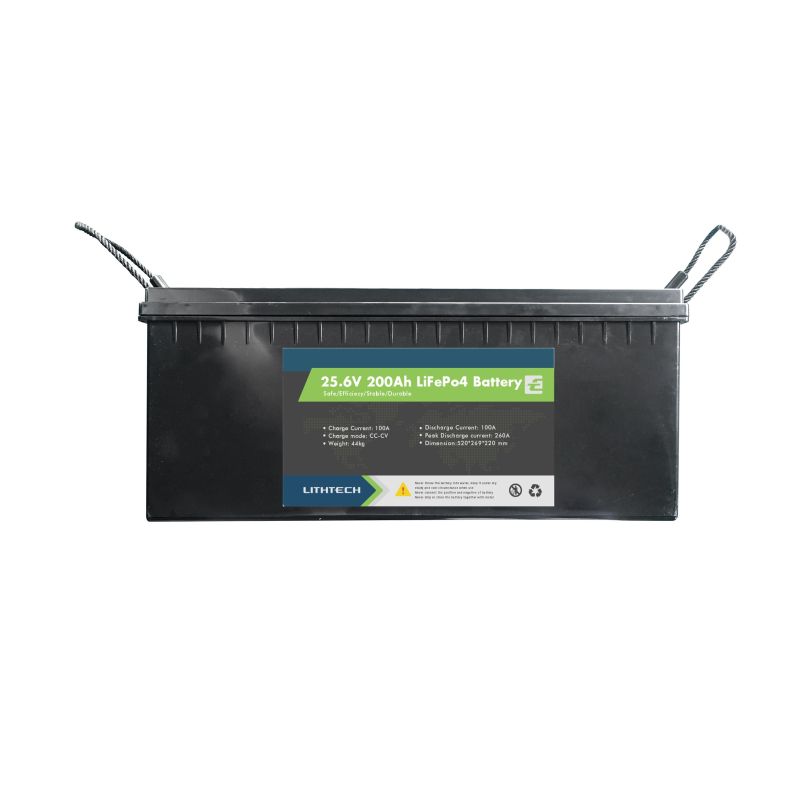

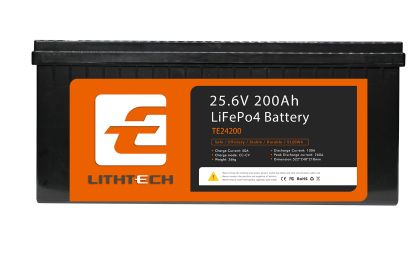

LITHTECH 25.6V 200Ah LiFePO4 Battery
- Compact Design: Modular automotive-grade design with anti-vibration structure.
- Supports Parallel and Series Connection: Flexible connection options for customized applications.
- Independent Bluetooth App: Compatible with Android and iOS systems.
- High and Low Temperature Protection: Supports low-temperature charging and provides protection against overcharge, over-discharge, overvoltage, and short circuit.
- Long Cycle Life: Over 5000 cycles.
- Optional Communication: Supports CAN/RS485/RS232 communication.
Specifications
| Electrical Characteristics | |
|---|---|
| Nominal Voltage | 25.6V |
| Nominal Capacity | 200Ah |
| Energy | 5120Wh |
| Internal Resistance | ≤45mΩ |
| Cycle Life | 5000 cycles |
| Self-discharge (monthly) | ≤3.5% at 25℃ |
| Standard Charging | |
| Charging Voltage | 28.4V~29.2V±0.2V |
| Charge Current | 100A |
| Max Charge Current | 100A |
| Standard Discharging | |
| Discharge Current | 100A |
| Max Continuous Current | 260A |
| Peak Current | 260A (<3S) |
| Discharge Cut-off Voltage | 17.6V |
| Environmental | |
| Charging Temperature | 0℃ to 45℃ (32℉ to 113℉) @60±25% relative humidity |
| Discharging Temperature | -20℃ to 60℃ (-4℉ to 140℉) @60±25% relative humidity |
| Storage Temperature | 0℃ to 45℃ (32℉ to 113℉) @60±25% relative humidity |
| Waterproof and Dustproof | IP67 |
| Mechanical Characteristics | |
| Cells and Method | LFP/AL-100AH, 4S1P Plastic |
| Plastic Case | ABS |
| Dimensions (L*W*H) | 520*269*220mm |
| Weight | 44kg |
| Terminal | M8 |
-
Producer:LithTech
-
Warranty:2 years
-
IP Rating:
-
Voltage:24 V
-
Output voltage:200 V
-
Weight:44 kg.
