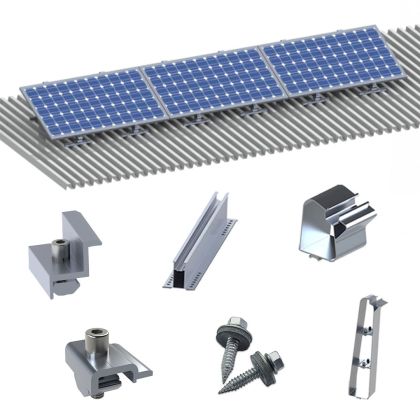

Mounting Structure Kit AR2 for North Roof Slope KT-AR2-SC

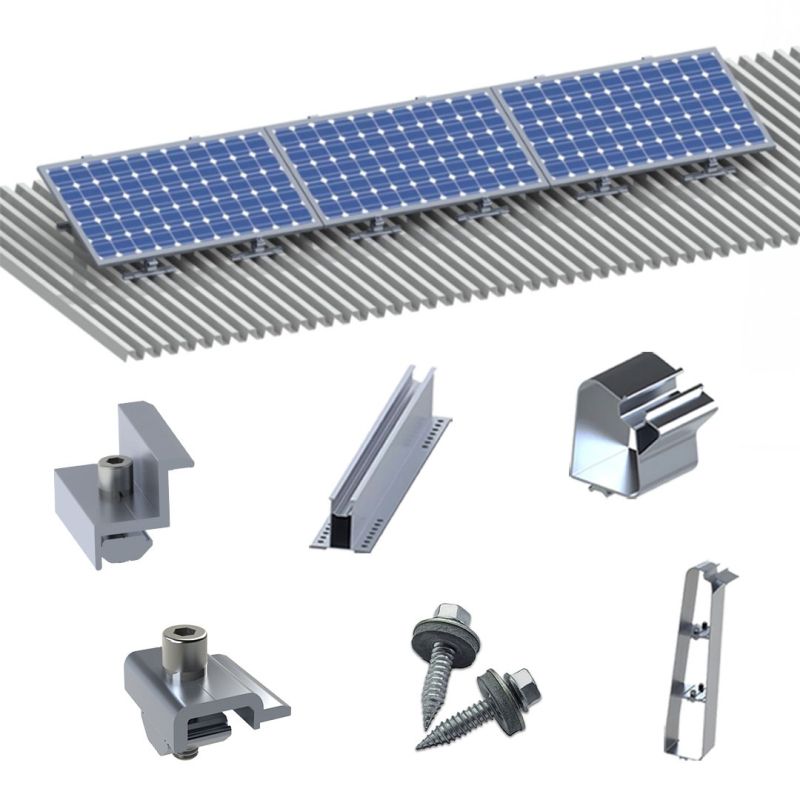

Mounting Kit for Photovoltaic Panels on North-Facing Roof Slope

The mounting kit for photovoltaic panels on a north-facing roof slope is a reliable solution providing strength, durability, and easy installation. It includes all necessary components for installing one panel in landscape orientation, with all parts manufactured from high-quality materials. This ensures long-term performance and stability even under adverse weather conditions.

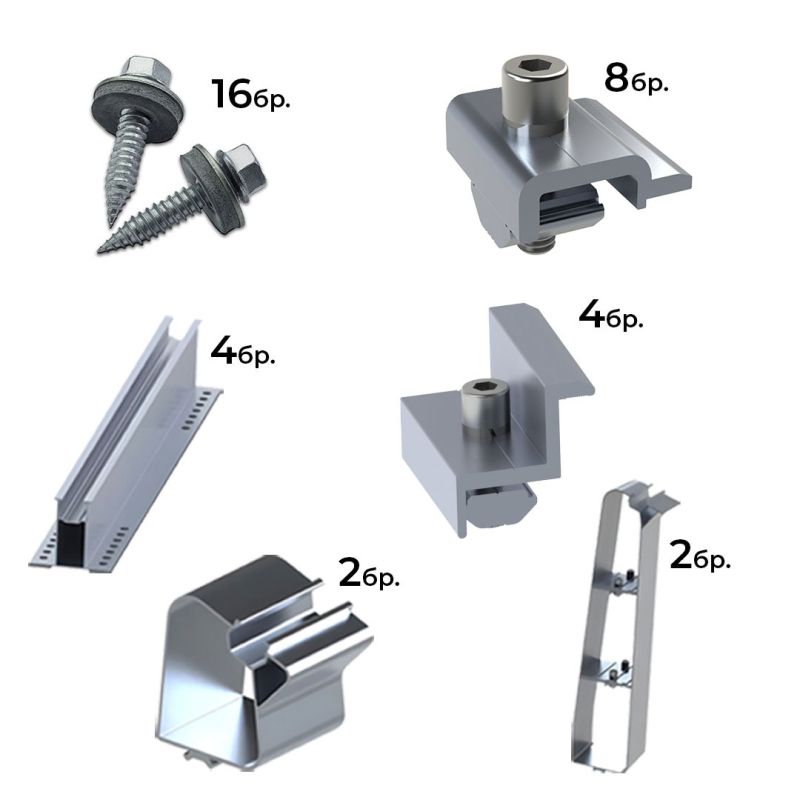

Kit Contents and Component Description:

• Mini Rail End Clamp 04 (AR2-RC04) – 8 pcs.
  Function: Secures the panels to the mini rail, ensuring stable fastening and protection against shifting.
• Self-Tapping Screw for Metal Sheets 6.0×25 mm (AR2-WS(C)) – 16 pcs.
  Function: Provides secure attachment to metal roofing sheets, guaranteeing structural reliability and stability.
• Rear Leg 20°, L=80 mm, Height 483 mm (AR2-RL) – 2 pcs.
  Function: Supports the rear part of the structure, creating the optimal tilt angle for photovoltaic panel installation.
• Front Leg 20°, L=80 mm, Height 141 mm (AR2-FL) – 2 pcs.
  Function: Supports the front part of the structure, ensuring strong and stable panel positioning.
• Universal End Clamp with Mini Rail Nut 04 (30 mm, 35 mm, 40 mm) (AR2-EC05-30) – 4 pcs.
  Function: Secures the outer panels to the structure, preventing movement and ensuring safe fastening.
• Mini Rail H27 mm + Rubber Gasket 380 mm (AR2-MR13-L380-N1) – 4 pcs.
  Function: Provides solid panel mounting, while the rubber gasket protects the roof surface and reduces vibrations.

System Advantages:

• Strong and Reliable – Designed for maximum stability and durability
• Quick and Easy Installation – All necessary components included
• Suitable for Various Roof Types
• Long-Lasting, High-Quality Materials
• Provides Optimal Tilt Angle for Maximum Panel Efficiency
