5kW Hybrid Solar System with 5.12kWh LiFePO4 Battery – Deye SUN-5K-SG05LP1-EU + LVTS-512100-NS
-
Code:Deye5kW+LVTOPSUN5.12kWh
-
Weight:65.000 Kgs
Quick Buy

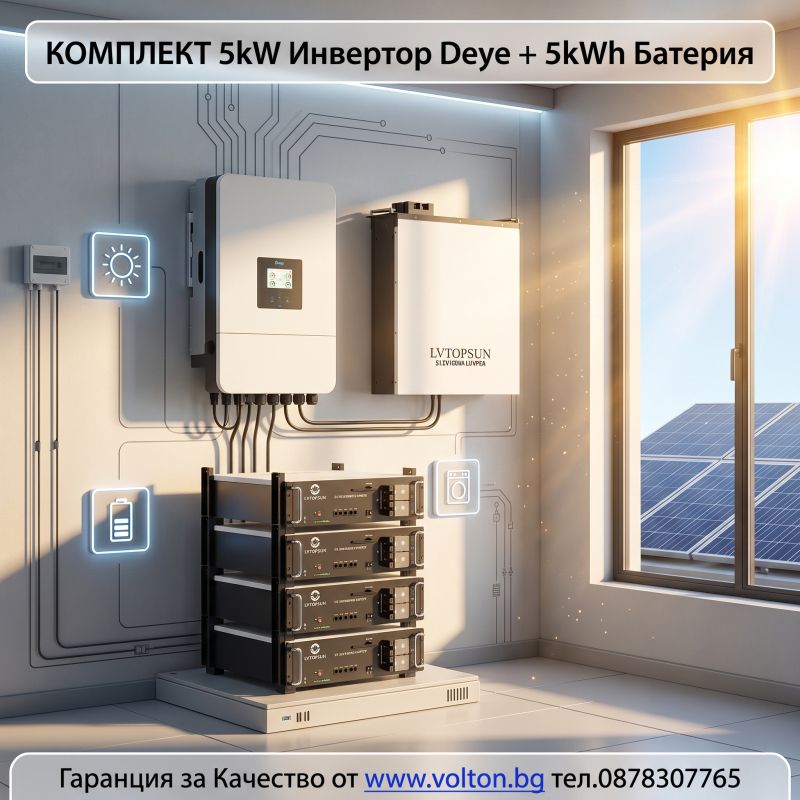

Deye 5kW Hybrid Solar System with 5.12kWh LiFePO4 Battery
Deye SUN-5K-SG05LP1-EU + LVTS-512100-NS is a compact single-phase hybrid solar energy system designed for residential, small business and energy storage applications.
The system combines a 5kW Deye hybrid inverter with a 5.12kWh LiFePO4 battery featuring a nominal voltage of 51.2V and a capacity of 100Ah. The LiFePO4 battery technology provides a reliable solution for daily solar energy storage.
The inverter features 2 MPPT trackers for efficient solar panel management and supports intelligent battery charging and discharging. The maximum battery charging and discharging current is up to 120A.
Key Features
- 5kW single-phase Deye hybrid inverter
- 5.12kWh LiFePO4 battery
- 51.2V / 100Ah battery capacity
- 2 MPPT trackers for flexible PV system design
- Up to 120A inverter battery charge/discharge current
- Intelligent battery charging and discharging management
- CAN / RS485 battery communication
- Expandable battery storage system
- Suitable for homes, villas, offices and small businesses
Inverter Technical Specifications
| Model | Deye SUN-5K-SG05LP1-EU |
| Type | Single-phase hybrid inverter |
| Rated AC Power | 5 kW |
| Maximum AC Current | 23.9 A |
| Battery Voltage Range | 40–60 V |
| Maximum Charge/Discharge Current | 120 A |
| Maximum PV Input Voltage | 500 V |
| MPPT Voltage Range | 150–425 V |
| MPPT Trackers | 2 |
| Maximum Efficiency | 97.6% |
| Protection Rating | IP65 |
| Communication | WiFi / RS485 / CAN |
Battery Technical Specifications
| Model | LVTS-512100-NS |
| Battery Technology | LiFePO4 |
| Nominal Voltage | 51.2 V |
| Capacity | 100 Ah |
| Battery Energy | 5.12 kWh |
| Maximum Charge Current | 50 A |
| Maximum Discharge Current | 100 A |
| Communication | CAN / RS485 |
| Protection Rating | IP20 |
| Installation | Wall-mounted or floor-mounted |
Package Contents
- 1 x Deye SUN-5K-SG05LP1-EU – 5kW hybrid inverter
- 1 x LVTS-512100-NS – 5.12kWh LiFePO4 battery
This solar storage package is an excellent solution for increasing solar self-consumption and storing excess photovoltaic energy for later use.
-
Weight:65 kg.
