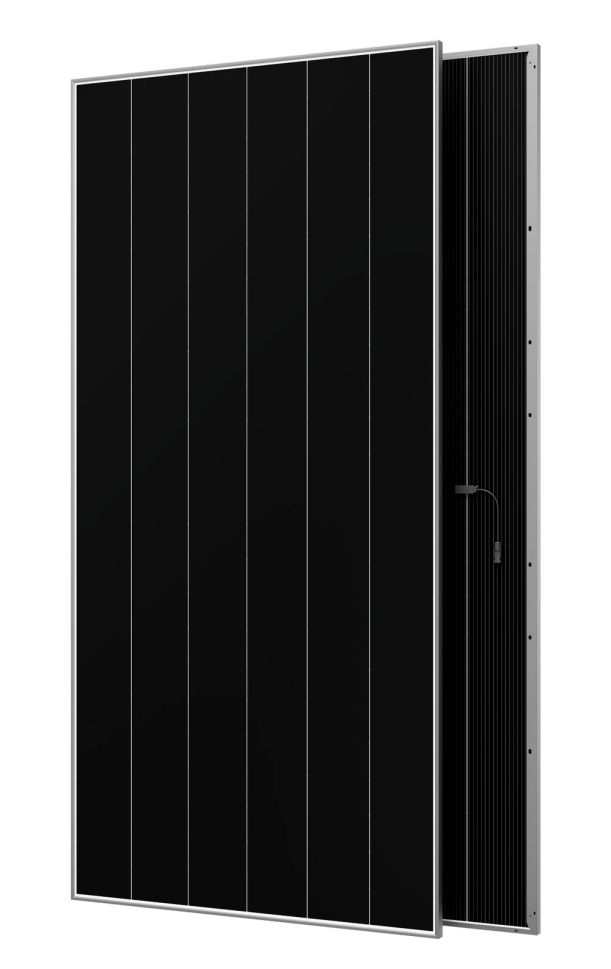

660W AIKO STELLAR 3N+72 Tier 1 N-Type ABC 2382x1134x30mm Grey Frame Dual-glass

The AIKO-A660-MDE72Dw is a high-performance solar module from the AIKO Stellar 3N+72 series, featuring advanced N-Type ABC cell technology. With a rated power of 660W and module efficiency of up to 24.4%, the panel is designed for photovoltaic systems where high power output and efficient use of available roof space are important.

AIKO Stellar 3N+72 660W – N-Type ABC Technology

The module uses 144 N-Type ABC cells arranged in a 6x24 configuration. ABC technology places the electrical contacts on the rear side of the cells, helping optimize the active front surface of the module. The AIKO-A660-MDE72Dw provides a rated power of 660W with a power tolerance of 0 to +3%.

The panel features a Dual-glass construction with 2.0 mm front glass and 2.0 mm rear glass, combined with an anodized aluminium frame in grey. This construction is designed for long-term operation under a wide range of environmental conditions.

Main Technical Specifications

• Model: AIKO-A660-MDE72Dw
• Series: Stellar 3N+72
• Rated Power: 660W
• Cell Technology: N-Type ABC
• Number of Cells: 144 (6x24)
• Module Efficiency: 24.4%
• Maximum Power Voltage Vmp: 44.99V
• Open Circuit Voltage Voc: 55.10V
• Maximum Power Current Imp: 14.68A
• Short Circuit Current Isc: 15.39A
• Maximum System Voltage: DC 1500V
• Maximum Series Fuse: 30A
• Construction: Dual-glass
• Glass: 2.0 + 2.0 mm
• Frame: Anodized aluminium, grey
• Dimensions: 2382 x 1134 x 30 mm
• Weight: approximately 32.2 kg
• Junction Box: IP68, 3 bypass diodes
• Connector: MC4 compatible
• Operating Temperature: -40°C to +70°C

High Power and Efficient Use of Roof Space

With a rated output of 660W, the AIKO-A660-MDE72Dw delivers high installed power while reducing the number of modules required for a given system capacity. This makes the panel suitable for residential, commercial and industrial photovoltaic installations where efficient use of available roof space is important.

Long-Term Performance

The AIKO Stellar 3N+72 series is designed for long-term energy production with low degradation. The series specifies maximum first-year degradation of 1% and up to 0.35% annual degradation from years 2 to 30, supported by a 30-year linear performance warranty. :contentReference[oaicite:2]{index=2}

The AIKO-A660-MDE72Dw combines N-Type ABC technology, 660W rated power, high module efficiency and Dual-glass construction, making it suitable for modern residential, commercial and industrial solar installations where high module output and long-term performance are key requirements.
