30kW Three-Phase Solar System with 48kWh Battery Storage

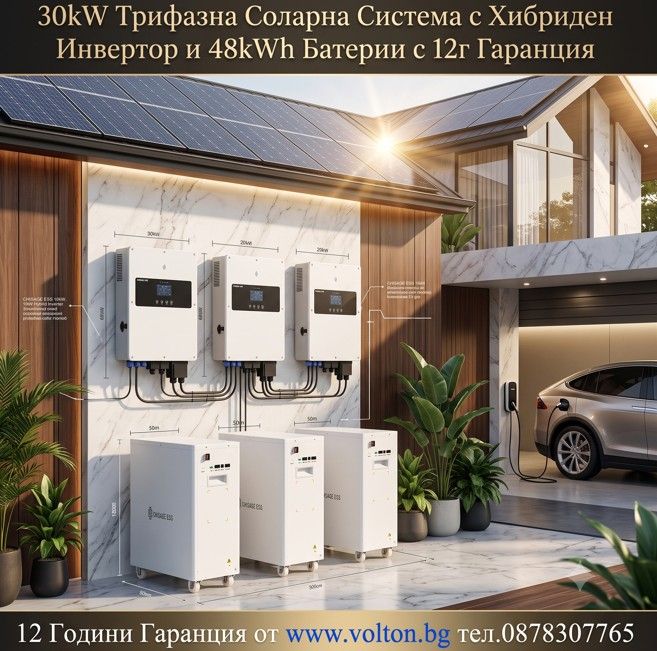

Complete package for a 30kW three-phase hybrid solar system, including 3 × 10kW CHISAGE Jup-10G2-LE single-phase low-voltage hybrid inverters with WiFi and a 12-year warranty, together with 3 × 16.08kWh CHISAGE MOON16-GPro LiFePO4 batteries providing a total storage capacity of 48.24kWh. The three inverters operate together as a three-phase system.

The photovoltaic section includes 54 × 605W bifacial N-Type JA Solar panels measuring 2278 × 1134 × 30 mm, providing a total peak PV capacity of 32.67kWp. The batteries use EVE cells, CN BMS technology and are designed for up to 6000 cycles.

The package includes aluminium mounting rails and clamps for sandwich panels, MC4 connectors, 6mm² solar cables, DC protection boxes with surge protection, a three-phase AC distribution box with ATS, protection devices and fuses, as well as grounding components. The system can generate solar electricity, store surplus energy in the batteries and use the stored energy when solar production is insufficient, helping increase energy independence and optimize self-consumption.

Installation of the equipment is not included in the package.
