160kWh DEYE BOS-B-Pack16-A3 HV Lithium-ion battery for Commercial & Industrial Applications
-
Code:DEYE-HV-160kWh
-
Weight:1400.000 Kgs
Quick Buy

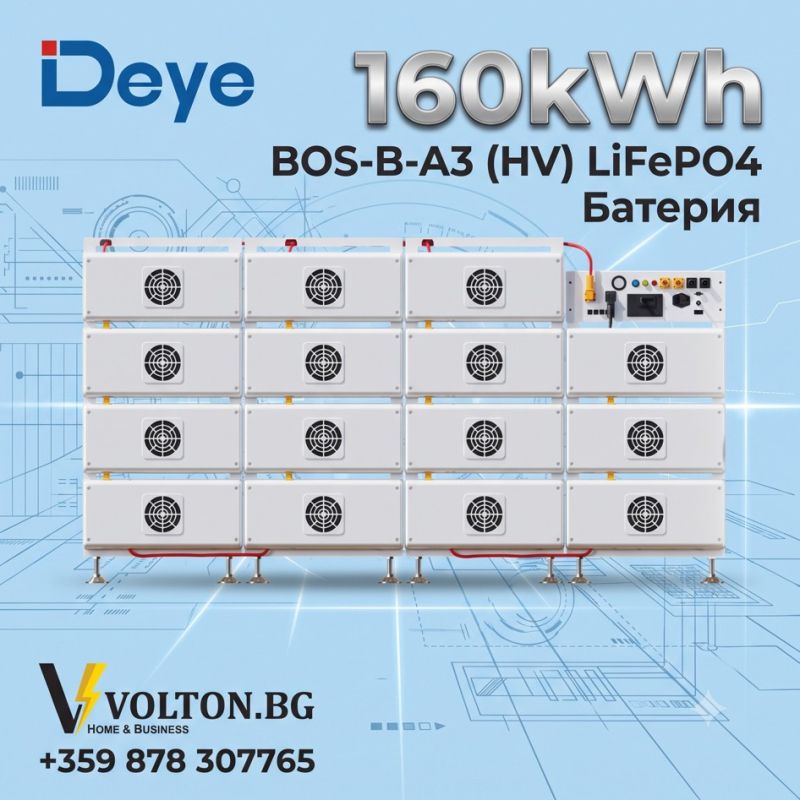

DEYE BOS-B160 Pro-A3 160kWh – High Voltage LiFePO4 Battery Energy Storage System
The DEYE BOS-B160 Pro-A3 160kWh is a professional high-voltage lithium iron phosphate (LiFePO4) battery energy storage system designed for commercial and industrial applications (C&I ESS). It combines high energy capacity, modular architecture, intelligent battery management and integration capabilities for compatible DEYE hybrid inverters.
The system consists of 10 DEYE BOS-B-Pack16-A3 battery modules, each providing 16.08kWh of energy storage. The complete configuration delivers 160.7kWh nominal energy and 144.63kWh usable energy at the recommended 90% depth of discharge.
With a nominal system voltage of 512V DC, a maximum charge/discharge current of 180A and maximum DC power of 92.16kW, the DEYE BOS-B160 Pro-A3 is designed for solar PV energy storage, commercial power management and industrial energy optimization.
Key Features and Benefits
- 160.7kWh nominal energy – high-capacity storage for commercial and industrial facilities.
- 144.63kWh usable energy – based on the recommended 90% depth of discharge.
- LiFePO4 battery chemistry – excellent thermal stability and long operational life.
- 10 modular battery units – each providing 16.08kWh of energy storage.
- 512V high-voltage architecture – suitable for professional HV battery storage systems.
- 92.16kW maximum DC power – supports demanding commercial energy applications.
- 6000+ charge/discharge cycles – under specified manufacturer testing conditions.
- Intelligent Battery Management System – battery monitoring, diagnostics and protection.
- Smart fan cooling – intelligent thermal management.
- TCP / RS485 / CAN communication – integration with compatible energy management systems.
- Rack-mounted modular design – suitable for professional indoor installation.
DEYE BOS-B160 Pro-A3 160kWh Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | DEYE |
| Product Series | BOS-B Pro-A3 |
| System Model | BOS-B160 Pro-A3 |
| Product SKU | DEYE-HV-160kWh |
| Battery Module Model | BOS-B-Pack16-A3 |
| Battery Chemistry | LiFePO4 (LFP) |
| Nominal System Energy | 160.7 kWh |
| Usable Energy | 144.63 kWh (90% DoD) |
| Number of Battery Modules | 10 |
| Battery Module Energy | 16.08 kWh |
| Module Nominal Voltage | 51.2 V |
| Battery Capacity | 314 Ah |
| Nominal System Voltage | 512 V DC |
| Operating Voltage Range | 416–584 V DC |
| Max. Charge/Discharge Current | 180 A |
| Maximum DC Power | 92.16 kW |
| System Dimensions (W×H×D) | 1608 × 1305 × 800 mm |
| Approximate System Weight | 1436 kg |
| Approximate Module Weight | 126 kg |
| Ingress Protection Rating | IP20 |
| Charging Temperature | 0°C to +55°C |
| Discharging Temperature | -20°C to +55°C |
| Storage Temperature | 0°C to +35°C |
| Thermal Management | Smart Fan Cooling |
| Communication Ports | TCP / RS485 / CAN |
| BMS Communication | CAN |
| Display | LCD – SOC / Fault Codes |
| Operating Humidity | 5%–85% |
| Maximum Altitude | 3000 m |
| Recommended Depth of Discharge | 90% |
| Cycle Life | ≥6000 cycles* |
| Manufacturer-Listed Warranty | 10 years** |
| Installation Type | Rack Mounted |
| Series Certifications | CE / IEC 62619 / IEC 62040 / UN 38.3 |
* At 25±2°C, 0.5C charge/discharge and 70% remaining capacity. ** Subject to manufacturer warranty terms and conditions.
Intelligent Battery Management and Safety
The DEYE BOS-B160 Pro-A3 incorporates an intelligent Battery Management System (BMS) for continuous monitoring of operating parameters, battery protection and system diagnostics. The integrated LCD display provides state-of-charge information and fault codes.
LiFePO4 battery chemistry provides excellent thermal stability, while intelligent fan cooling supports effective temperature management during operation.
Commercial and Industrial Applications
- Commercial and industrial solar PV installations.
- Manufacturing plants and industrial facilities.
- Warehouses and logistics centers.
- Hotels, office buildings and retail facilities.
- Solar energy self-consumption optimization.
- Peak shaving and electricity demand management.
- Backup power with compatible inverter configurations.
- Professional energy management systems.
Why Choose the DEYE BOS-B160 Pro-A3?
The DEYE BOS-B160 Pro-A3 combines high energy storage capacity, modular battery technology and intelligent system management. It enables businesses to store excess solar electricity and use it when energy demand increases or solar generation decreases.
When correctly designed and configured, the system can help reduce grid dependency, improve renewable energy utilization and optimize electricity operating costs.
Frequently Asked Questions
What is the capacity of the DEYE BOS-B160 Pro-A3?
The battery provides 160.7kWh nominal energy and 144.63kWh usable energy at the recommended 90% depth of discharge.
How much does the DEYE 160kWh battery system weigh?
The complete battery configuration weighs approximately 1436kg and measures 1608 × 1305 × 800mm.
How many battery modules are included?
The system includes 10 BOS-B-Pack16-A3 battery modules connected in series.
Can the DEYE BOS-B160 Pro-A3 work with solar inverters?
Yes. The system is designed for integration with compatible hybrid inverters and solar energy storage installations. Compatibility must be confirmed for the selected inverter model.
DEYE BOS-B160 Pro-A3 160kWh – Price and Availability
Looking for a professional high-voltage battery energy storage solution? Contact us for pricing, availability, technical consultation and a customized quotation for the DEYE BOS-B160 Pro-A3 160kWh system.
