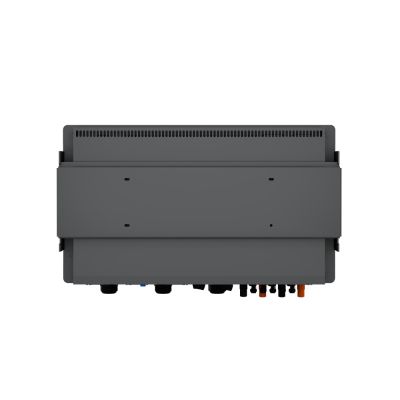

60kW CHISAGE Three Phase High Voltage Hybrid Inverter with WiFi plug Warranty 10 Years

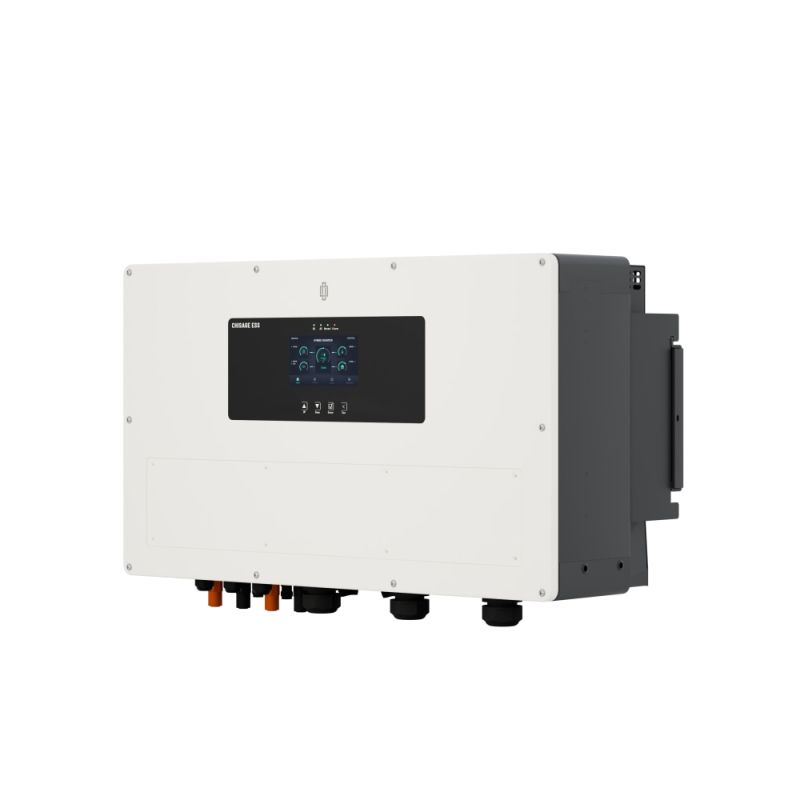

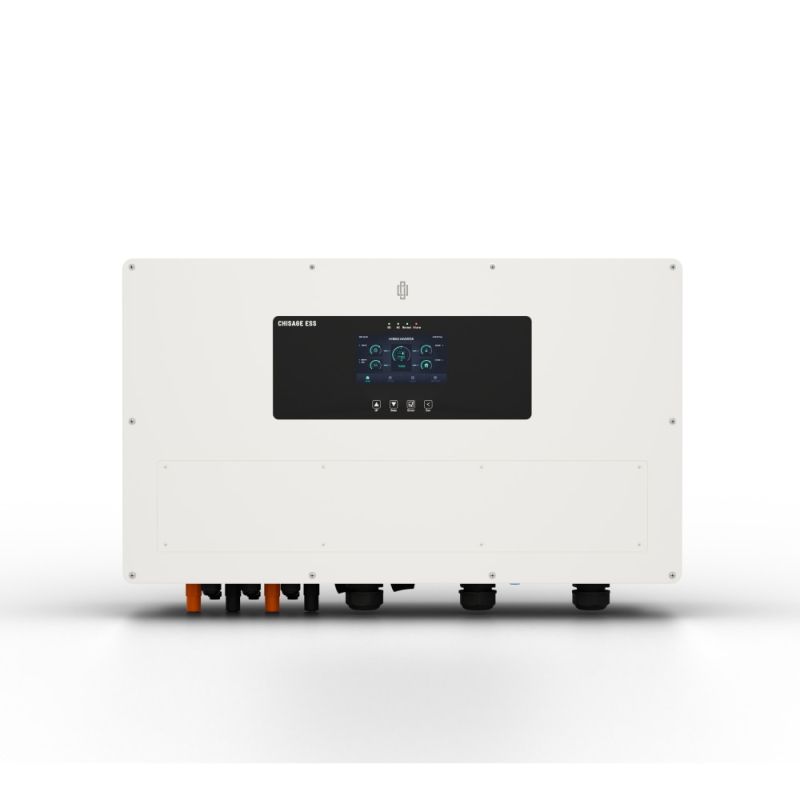

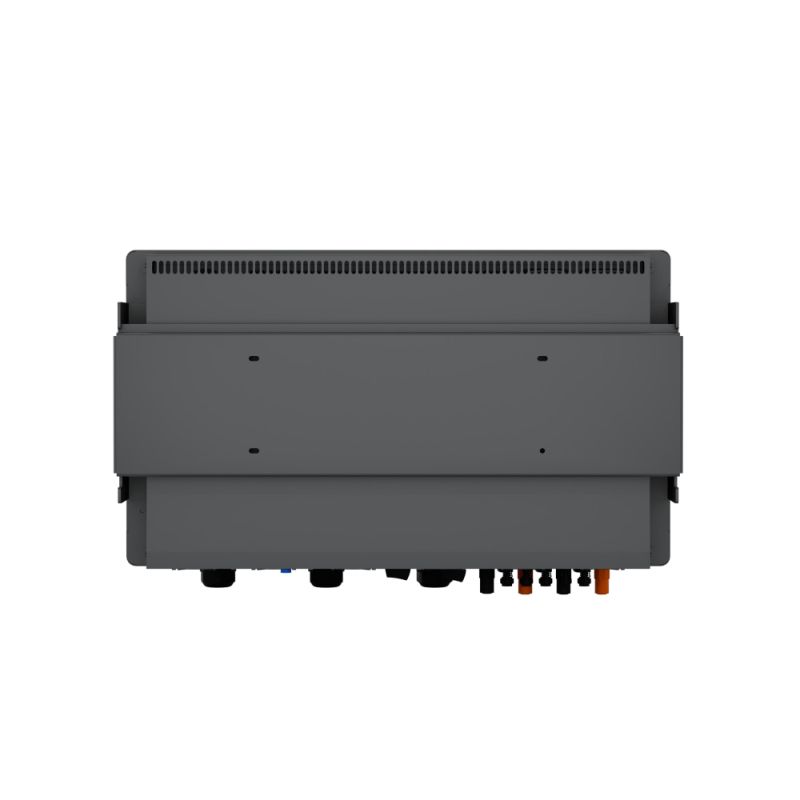

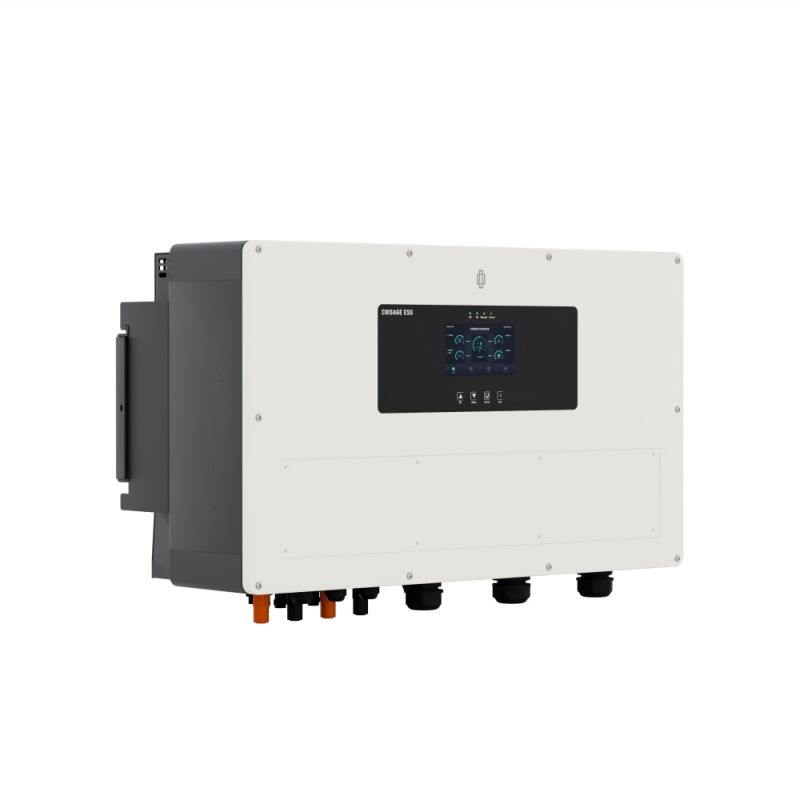

CHISAGE ESS Merc-60G1-HE 60kW – Three-Phase High Voltage Hybrid Solar Inverter

The CHISAGE ESS Merc-60G1-HE 60kW is a powerful three-phase high-voltage hybrid solar inverter designed for commercial and industrial photovoltaic installations, battery energy storage systems and professional energy management applications.

Combining solar power generation, battery charging and discharging, grid-connected operation and backup power capabilities, the Merc-60G1-HE provides a flexible solution for businesses seeking improved energy efficiency and greater control over electricity consumption.

With 60kW rated AC output power, 66kW maximum AC output power, 90kW maximum PV input capacity and 5 independent MPPT trackers, the inverter is suitable for demanding commercial and industrial solar energy projects.

The inverter supports high-voltage lithium-ion and lead-acid batteries operating within a 160–800V DC voltage range, intelligent BMS communication and up to 62.5kW maximum battery charging/discharging power.

Key Features and Benefits of CHISAGE ESS Merc-60G1-HE

• 60kW rated three-phase output – ideal for commercial and industrial photovoltaic installations.
• 66kW maximum AC output power – high performance for demanding electrical loads.
• 90kW maximum PV input power – supports large solar panel arrays.
• 5 independent MPPT trackers – optimized energy harvesting from different PV orientations.
• 10 PV string inputs – two strings per MPPT tracker.
• 160–800V high-voltage battery compatibility – supports compatible lithium-ion and lead-acid batteries.
• Dual battery inputs – maximum charging/discharging current of 60+60A.
• 62.5kW maximum battery charging/discharging power – efficient battery energy management.
• 97.6% maximum conversion efficiency – excellent power conversion performance.
• Over 99% MPPT efficiency – precise maximum power point tracking.
• On-grid and Off-grid operation – flexible grid-connected and standalone applications.
• EPS backup output – supports backup power applications.
• Dedicated diesel generator input – additional power supply and battery charging capabilities.
• Color touchscreen LCD – convenient monitoring and system control.
• IP65 protection rating – suitable for demanding installation environments.
• Parallel operation – supports up to 20 inverters in off-grid mode.

CHISAGE ESS Merc-60G1-HE 60kW Technical Specifications

Advanced Solar and Battery Energy Management

The CHISAGE ESS Merc-60G1-HE enables intelligent energy distribution between solar PV panels, battery storage, the utility grid and connected electrical loads.

Its five independent MPPT trackers maximize solar energy harvesting across PV strings with different orientations and sunlight conditions. Time-based battery charging and discharging settings allow businesses to optimize electricity consumption and energy storage strategies.

High Voltage Battery Integration

The inverter supports high-voltage battery systems operating between 160V and 800V DC. Two independent battery input connections provide a maximum charging and discharging current of 60+60A.

CAN and RS485 communication interfaces enable integration with compatible battery management systems. Final battery compatibility must be verified for the selected battery model and BMS protocol.

On-Grid, Off-Grid and Backup Power Operation

The Merc-60G1-HE supports grid-connected and standalone operating modes. Its EPS output enables backup power supply for selected electrical loads when properly configured.

A dedicated AC input for a diesel generator provides an additional power source and supports battery charging from generator power. The inverter also supports parallel operation of up to 20 units in off-grid applications.

Integrated Protection and Reliability

• PV input surge protection.
• Anti-islanding protection.
• PV string reverse polarity protection.
• Insulation resistance monitoring.
• Residual current monitoring.
• AC output overcurrent protection.
• Output short-circuit protection.
• Optional PV arc fault detection (AFCI).
• IP65 enclosure protection.

Certifications and Standards

The Merc G1-HE series technical documentation lists compliance with the following electrical safety, electromagnetic compatibility and grid connection standards:

• IEC/EN 62109-1 and IEC/EN 62109-2.
• IEC/EN 61000-6-1 / 6-2 / 6-3 / 6-4.
• VDE-AR-N 4105, IEC 61727, G98 and G99.
• CEI 0-21, NRS 097, VDE 0126-1-1 and additional grid standards.

Applicable certification and grid connection requirements must be verified for the destination market and installation.

Commercial and Industrial Applications

• Commercial and industrial solar PV installations.
• Manufacturing plants and industrial facilities.
• Warehouses and logistics centers.
• Hotels, office buildings and shopping centers.
• High-voltage battery energy storage systems.
• Solar self-consumption and peak shaving.
• Hybrid solar systems with diesel generators.
• Standalone and backup power solutions.

Frequently Asked Questions

What is the maximum solar PV input power?

The CHISAGE ESS Merc-60G1-HE supports up to 90kW maximum PV input power and features five independent MPPT trackers.

Which batteries are compatible with the inverter?

The inverter supports compatible lithium-ion and lead-acid batteries operating within a 160–800V DC voltage range. Lithium battery integration requires compatible BMS communication.

How much does the CHISAGE ESS Merc-60G1-HE weigh?

The inverter weighs 109.3kg and measures 976 × 665 × 371mm.

Can the inverter operate without the utility grid?

Yes. The Merc-60G1-HE supports off-grid operation and EPS backup functionality when installed in a suitable system configuration.

Can multiple inverters operate in parallel?

Yes. The series supports parallel operation of up to 20 inverter units in off-grid mode.

CHISAGE ESS Merc-60G1-HE 60kW – Price and Availability

Choose the CHISAGE ESS Merc-60G1-HE 60kW Three-Phase Hybrid Inverter for professional solar PV and battery energy storage applications. Contact us for pricing, availability, technical consultation and a customized quotation.
