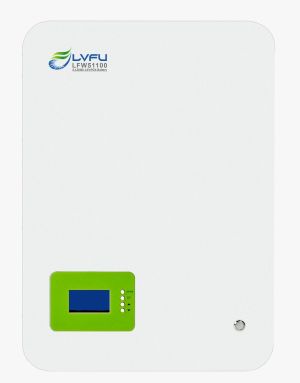

5.12kWh LiFePO4 Wall Mount Battery LVFU 51.2V 100Ah 6000 Cycles
- Code:DZBG51100
- Weight:55.000 Kgs
- Brand:LVFU
Quick Buy
Just 2 fields to fill in
Features:
- Long-Lasting Power Storage: The 48V 200Ah LiFePo4 battery offers a high capacity for storing energy, ensuring longer backup power for your devices and appliances during outages or off-grid use.

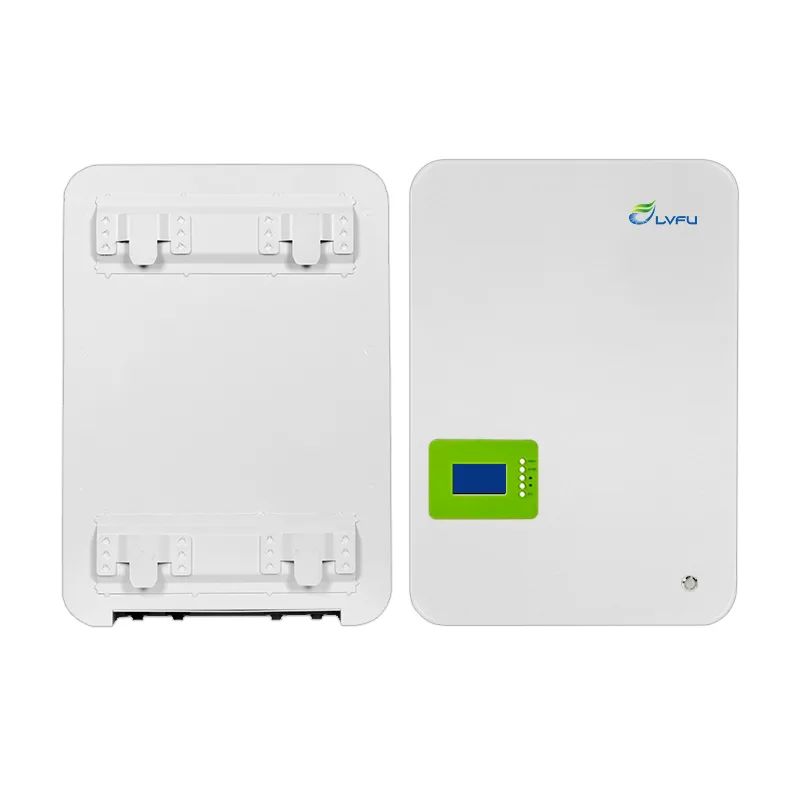

- Space-Saving Wall Mounted Design: This battery is conveniently designed to be mounted on the wall, saving valuable floor space in your home or workspace.
- Long-lasting Performance: With its advanced LiFePo4 technology, this battery offers 6000 cycles at 80% Depth of Discharge (DoD), our battery guarantees a reliable and extended lifespan.
- Reliable and Safe Operation: Built with high-quality materials and advanced safety features, this LiFePo4 battery provides reliable performance with protection against overcharging, overheating, over-temperature, over-current, low voltage safeguards, and short circuits, ensuring peace of mind during operation.

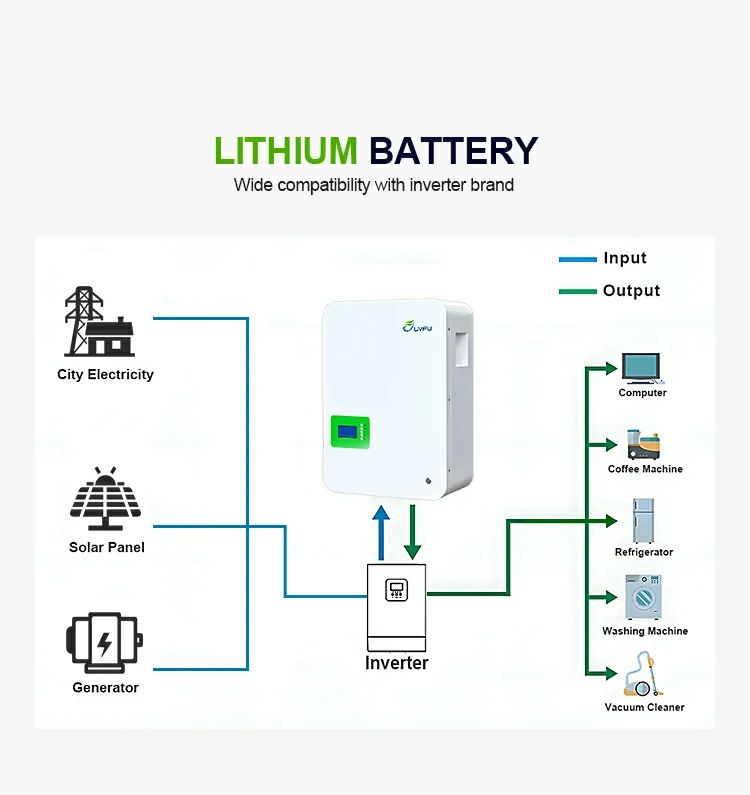

- Environmentally Friendly Energy Storage: By harnessing the power of the sun to charge the battery, you can reduce your reliance on traditional electricity sources and lower your carbon footprint, contributing to a more sustainable and eco-friendly lifestyle.

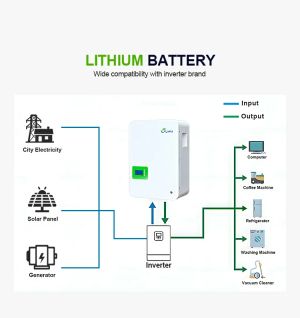

- Versatile Compatibility: Compatible with various types of solar panel systems and inverters, this 48V 200Ah battery offers flexibility in integration with existing setups or as part of a new renewable energy system tailored to your specific needs and preferences.
- Efficient Charging and Discharging: The 48V system ensures efficient charging and discharging of the battery. Boasting an impressive 98% efficiency at 0.5C, maximizing energy utilization and reducing energy waste, ultimately saving you money on electricity bills.

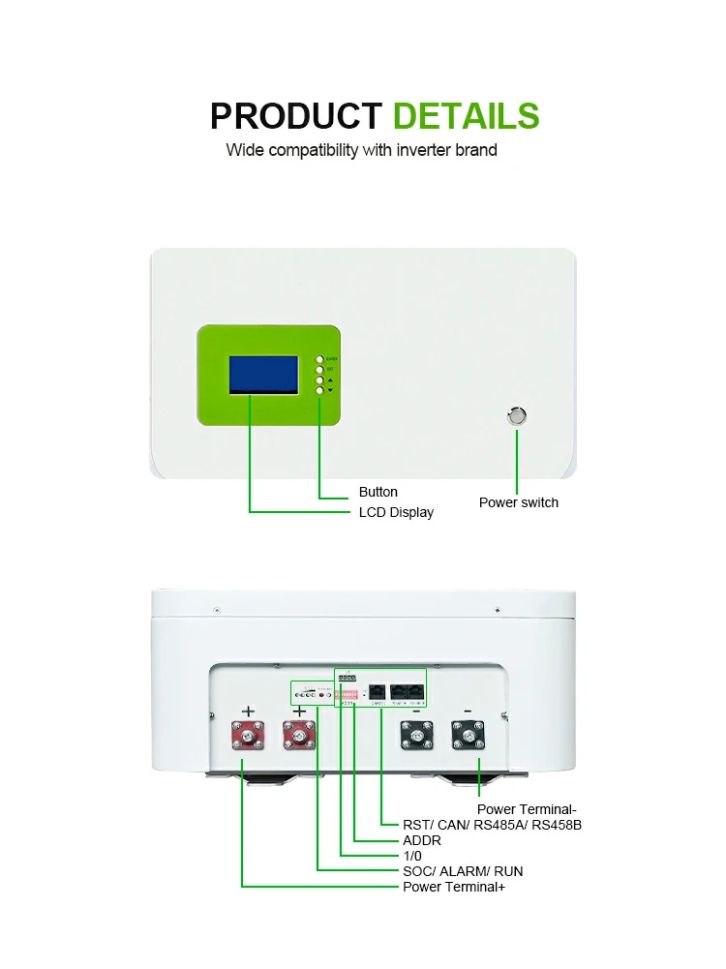

- Communication Protocols: Featuring versatile connectivity options such as CAN, RS485, and RS232, this battery allows seamless integration with different systems for efficient monitoring and control. Optional WIFI, 4G, and Bluetooth capabilities provide added convenience for remote management.
Certifications and Compliance:
- Certified with CE, FCC, and CCC standards, ensuring quality and safety.
- Compliant with UN 38.3, UN 3480, Class 9 for safe shipping.
Temperature Specifications:
- Wide operating temperature range from -20°C to 65°C for reliable performance in various environments.
LFW51100 Specifications | |
---|---|
Standard Voltage | 51.2VDC |
Voltage | 42.4–58.4VDC |
Nominal Capacity | 100Ah |
Rated Energy Capacity | 5.12kWh |
Communication Protocol | CAN/RS485/WIFI/4G/Bluetooth |
Efficiency (at 0.5C) | 98% |
Cell Self-Discharge | <5% / Month |
Maximum Units in Parallel | 16 (81.92kWh) |
Depth of Discharge | Up to 100% |
Useful Life | 8–10 Years |
Cycle Life | 6000 (@ 80% DoD) |
Protection | Over temperature, overcurrent, short circuit, over-charging, over-discharging, low voltage |
Charge Specifications | |
Recommended Charge Current | 50A |
Maximum Charge Current | 100A |
Recommended Charge Voltage | 57.6V |
Maximum Charge Voltage | 58.4V |
Discharge Specifications | |
Recommended Discharge Current | 50A |
Maximum Discharge Current | 100A |
Recommended Voltage Disconnect | 44V |
Battery Low Voltage Protection | 42.4V |
Battery Recovery Voltage | 48V |
Mechanical Specifications | |
Dimensions | 600×423×203mm |
Weight | 55kg |
Terminal Type | M6 |
Case Material | Industrial Grade Iron |
Enclosure Protection | IP20 |
Installation | Cabinet or Wall installation |
Cell Type Chemistry | LiFePO₄ |
Compliance Specifications | |
Certifications | CE, FCC, CCC |
Shipping Classification | UN 38.3, UN 3480, MSDS |
Temperature Specifications | |
Discharge Temperature | -20–65°C |
Charge Temperature | 0–55°C |
Storage Temperature | -20–45°C |
- Warranty:5 years
- IP Rating:20
- Weight:55 kg.
