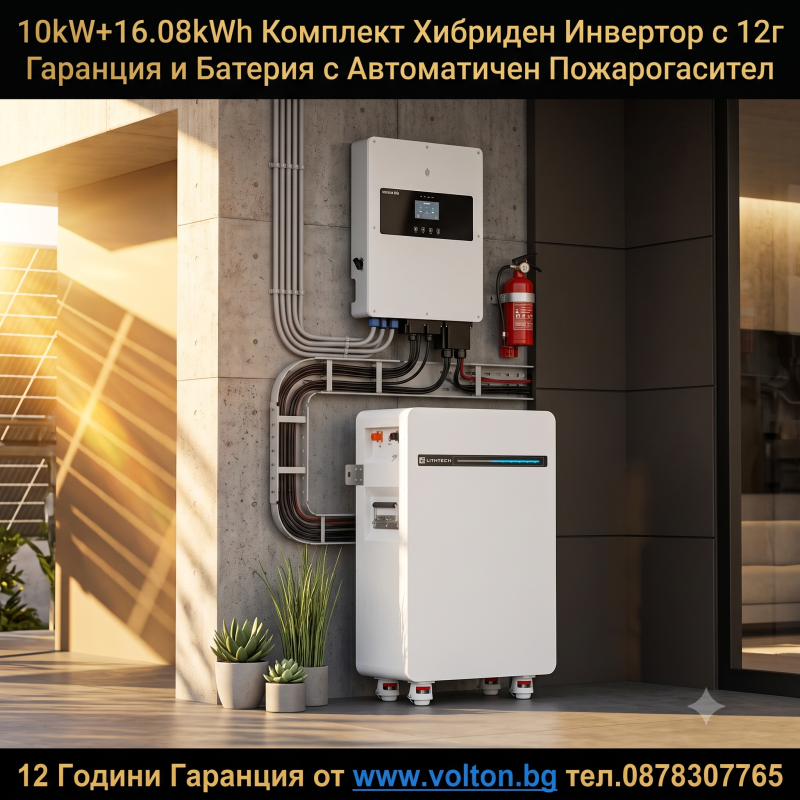

10kW Hybrid Inverter with 12-Year Warranty and 16.08kWh LiFePO4 Battery with Automatic Fire Extinguisher

This kit combines the 10kW CHISAGE JUP-10G2-LE hybrid inverter with a 12-year warranty and a high-capacity 16.08kWh Lithtech TR8500WX-Pro-13 LiFePO4 battery featuring a built-in automatic fire extinguisher. The solution is designed for residential, commercial and other photovoltaic energy storage systems.

The combination of a 10kW hybrid inverter and a 16.08kWh solar battery allows solar energy generated by photovoltaic panels to be stored and used when required. The Lithtech TR8500WX-Pro-13 uses LiFePO4 technology, 51.2V nominal voltage and 314Ah capacity, together with an intelligent BMS and multiple communication interfaces.

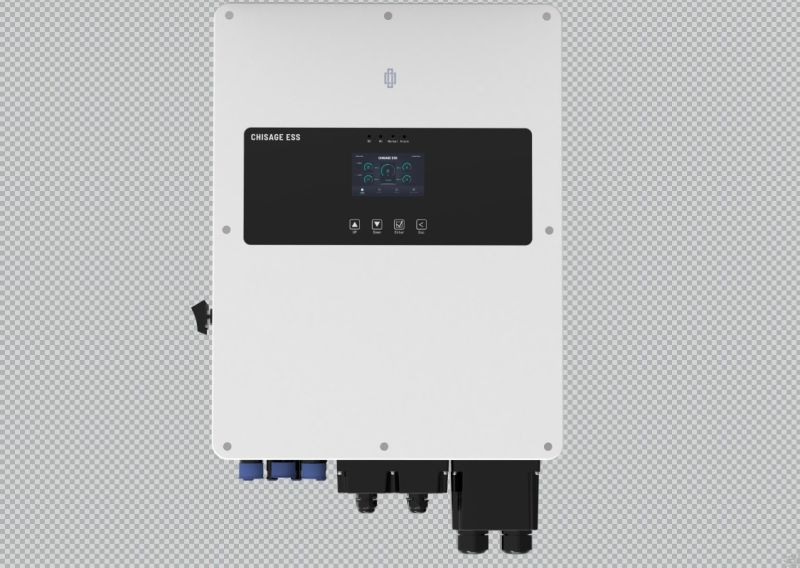

10kW CHISAGE JUP-10G2-LE Hybrid Inverter

The CHISAGE JUP-10G2-LE is a powerful single-phase hybrid inverter with a rated AC output power of 10kW, designed for photovoltaic systems with battery energy storage. The inverter manages energy between the solar panels, battery, electrical grid and connected loads.

• Rated AC output power: 10kW
• Maximum PV input power: 15kW
• MPPT range: 150–425V
• MPPT trackers: 2
• Maximum PV current: up to 34A + 34A
• AC output: 230V, single phase
• Frequency: 50/60Hz
• Maximum efficiency: up to 97.9%
• Communication: CAN / RS485
• Protection rating: IP65
• Installation: wall-mounted
• EPS backup power: Yes
• On-grid / off-grid operation: Yes
• Warranty: 12 years

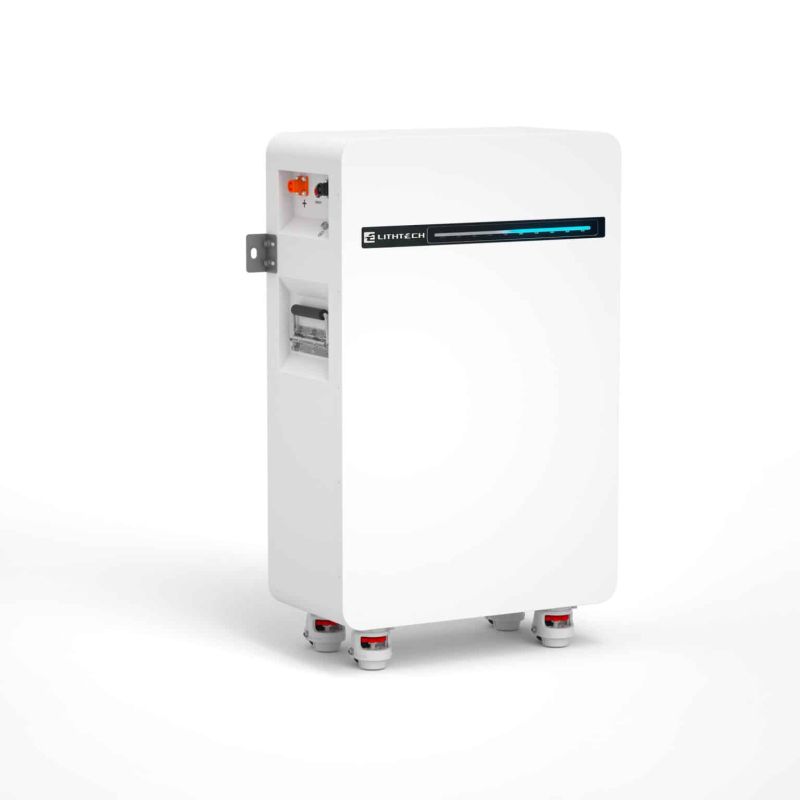

16.08kWh Lithtech TR8500WX-Pro-13 LiFePO4 Battery with Automatic Fire Extinguisher

The Lithtech TR8500WX-Pro-13 is a high-capacity 16.08kWh LiFePO4 battery designed for energy storage systems, photovoltaic installations and backup power applications. The battery features a built-in automatic fire extinguisher, providing an additional safety feature for the energy storage system.

• Brand: Lithtech
• Model: TR8500WX-Pro-13
• Battery type: LiFePO4
• Energy capacity: 16.08kWh
• Nominal voltage: 51.2V
• Capacity: 314Ah
• Cycle life: 5000+ cycles
• BMS: Yes
• Communication: RS232, RS485, CAN, Bluetooth, WiFi
• Plug & Play: Yes
• Protection rating: IP65
• Installation: wall or floor mounted
• Operating temperature: -20°C to +55°C
• Charging temperature: 0°C to 55°C
• Discharging temperature: -20°C to 55°C
• Noise level: <30 dB
• Dimensions: 850 × 650 × 167 mm
• Weight: 133 kg
• Automatic fire extinguisher: Built-in

Safe Energy Storage with LiFePO4 Technology

LiFePO4 technology is widely used in energy storage applications due to its thermal stability and long service life. The Lithtech 16.08kWh battery combines this chemistry with a BMS system designed to monitor and protect the battery, including charging, discharging, temperature control and cell balancing.

The built-in automatic fire extinguisher provides an additional safety function within the battery module. This makes the battery suitable for projects where safety and controlled energy storage operation are important considerations.

Communication and Intelligent Battery Management

The Lithtech battery provides CAN, RS485 and RS232 interfaces together with Bluetooth and WiFi communication. This allows integration with compatible hybrid inverters and monitoring of system operation. Plug & Play functionality can simplify installation and configuration with compatible systems.

Applications of the 10kW Hybrid Solar Kit

The 10kW hybrid inverter + 16.08kWh LiFePO4 battery combination is suitable for residential and commercial photovoltaic systems requiring a combination of high inverter power and substantial energy storage capacity. The system can be used to increase solar self-consumption, provide backup power and optimize the use of generated photovoltaic energy.

What is Required for a Complete Photovoltaic System?

The kit includes the CHISAGE JUP-10G2-LE 10kW hybrid inverter and Lithtech TR8500WX-Pro-13 16.08kWh LiFePO4 battery. A complete solar system also requires suitable photovoltaic panels, mounting structure and fasteners, solar cables, protection devices and other components selected according to the specific project.

Solar panels and mounting structure are not included in this kit. The number of PV panels and required mounting components should be determined according to the required PV capacity, roof type, orientation, inclination and specific installation conditions.

Key Advantages

• 10kW single-phase hybrid inverter
• 12-year inverter warranty
• 16.08kWh LiFePO4 battery
• 51.2V / 314Ah
• 5000+ cycles
• Built-in automatic fire extinguisher
• Intelligent BMS protection and management
• CAN, RS485 and RS232 communication
• Bluetooth and WiFi connectivity
• IP65 protection
• Floor or wall-mounted installation
• Suitable for residential, commercial and backup energy systems

The CHISAGE JUP-10G2-LE + Lithtech TR8500WX-Pro-13 kit provides a practical combination of a powerful hybrid inverter and high-capacity LiFePO4 energy storage. The system offers 10kW inverter power, 16.08kWh battery capacity and an additional safety feature through the built-in automatic fire extinguisher.

Inverter warranty: 12 years.
