5.12kWh LiFePO4 Rack/Wall Battery TOPSUN 51.2V 100Ah 6000 Cycles WiFi Bluetooth
Price excl. tax:
€750.00
1466.87лв.
Price inc. tax:
€900.00
1760.25лв.
-
Code:LVTS-512100-NS
-
Weight:47.000 Kgs
Quick Buy
Just 2 fields to fill in

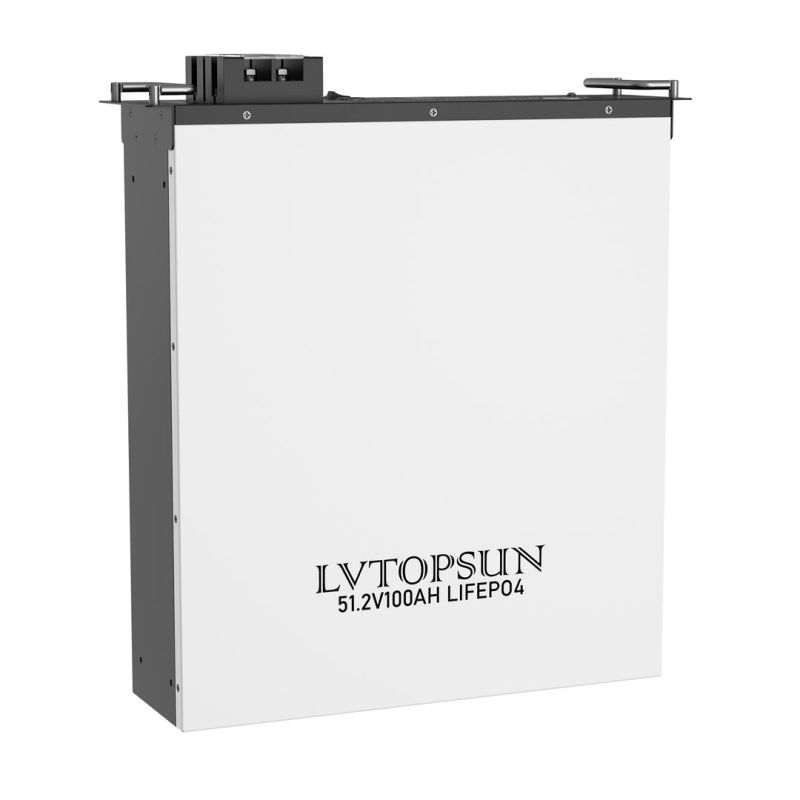

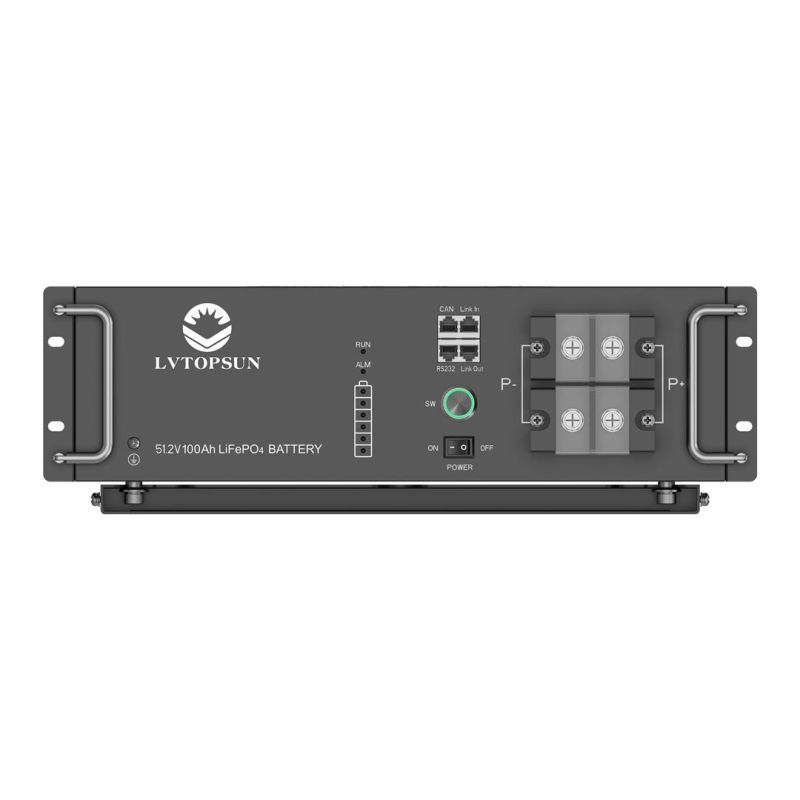

5.12kWh LiFePO4 BATTERY TOPSUN 51.2V 100Ah 6000 Cycles WiFi / Bluetooth
General Information:
The TOPSUN 5.12kWh battery uses high-quality LiFePO4 cells with long lifespan and built-in BMS for maximum safety and performance. Suitable for wall or floor installation, ideal for solar systems, UPS and off-grid applications.
Features:
- Nominal Voltage: 51.2V DC
- Capacity: 100Ah
- Energy: 5.12kWh
- Communication: CAN / RS485 / RS232 / WiFi / Bluetooth
- Long Lifespan: Over 6000 cycles at 90% DoD
- BMS Protection: Overcharge, over-discharge, short circuit, overheating protection
- Scalability: Up to 15 batteries in parallel
- Installation: Wall-mounted or rack-mounted
- Display: LED status indicators
Technical Specifications:
- Working Voltage: 45.6V – 56.16V
- Max Charge Current: 50A
- Max Discharge Current: 100A
- Max Charge Power: 2560W
- Max Discharge Power: 5120W
- Depth of Discharge: 90%
- Cycle Life: 6000 cycles
Mechanical Specifications:
- Dimensions: 440 x 500 x 132 mm
- Weight: ~47.3 kg
- IP Rating: IP20
- Operating Temperature: Charge: 0~45°C / Discharge: -20~55°C
Perfect solution for residential and commercial solar energy storage systems with smart monitoring via WiFi and Bluetooth connectivity.
-
Warranty:5 years
-
IP Rating:20
-
Weight:47 kg.
| File | Info |
|---|---|
Product catalog LV Top Sun
|
[PDF, 943.26 KB] |
Product catalog LV Top Sun
