30kW + 48kWh Hybrid Inverter and Battery Kit

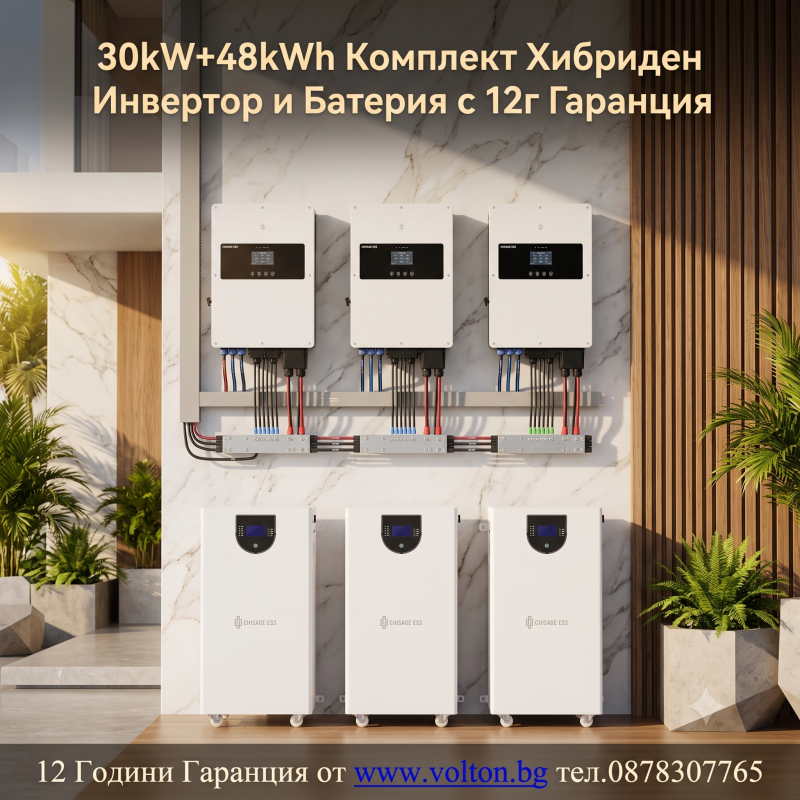

The 30kW + 48kWh hybrid system is a complete solution for three-phase photovoltaic systems requiring high inverter power and substantial energy storage capacity. The system consists of 3 × CHISAGE JUP-10G2-LE 10kW hybrid inverters and 3 × MOON16 16.08kWh LiFePO4 batteries. When configured for three-phase operation, the three single-phase inverters operate together as one coordinated system with a total nominal power of 30kW.

The total nominal battery energy capacity is 48.24kWh, allowing a substantial amount of solar energy generated by photovoltaic panels to be stored for later use. The system is suitable for large residential properties, commercial buildings, industrial facilities, farms and other applications with higher energy consumption.

30kW Three-Phase Hybrid Inverter System

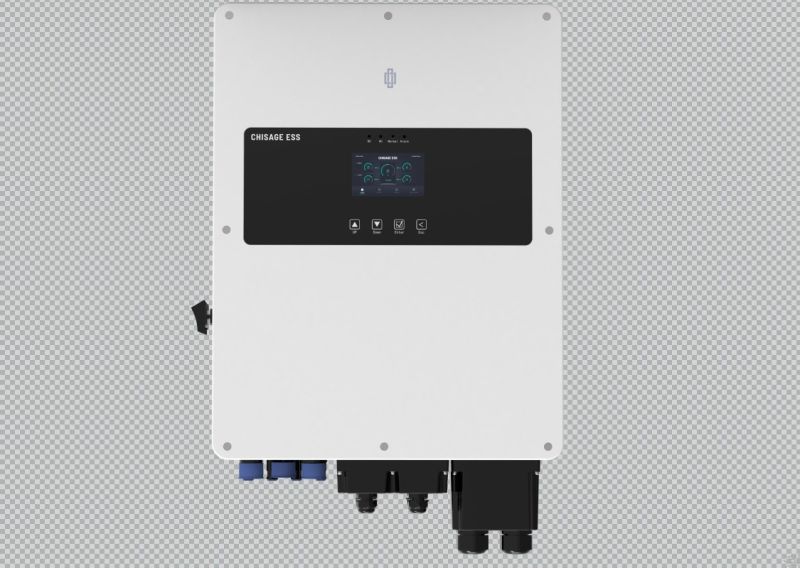

The system uses 3 × CHISAGE JUP-10G2-LE 10kW hybrid inverters. Each inverter is a single-phase unit with a rated AC output power of 10kW. The three units are configured as a three-phase system, providing a combined inverter power of up to 30kW.

This configuration allows three individual single-phase hybrid inverters to operate together within one coordinated three-phase solar system. Each inverter can manage its own PV configuration and battery module while the three units operate synchronously as one system.

• Number of inverters: 3
• Model: CHISAGE JUP-10G2-LE
• Power per inverter: 10kW
• Total nominal power: 30kW
• Configuration: Three-phase
• Type: Hybrid inverter
• Maximum PV power per inverter: up to 15kW
• MPPT: 2 per inverter
• AC output: 230V per phase
• Battery communication: CAN / RS485
• Protection rating: IP65
• EPS backup power: Yes
• On-grid / off-grid operation: Yes

48.24kWh LiFePO4 Battery Storage

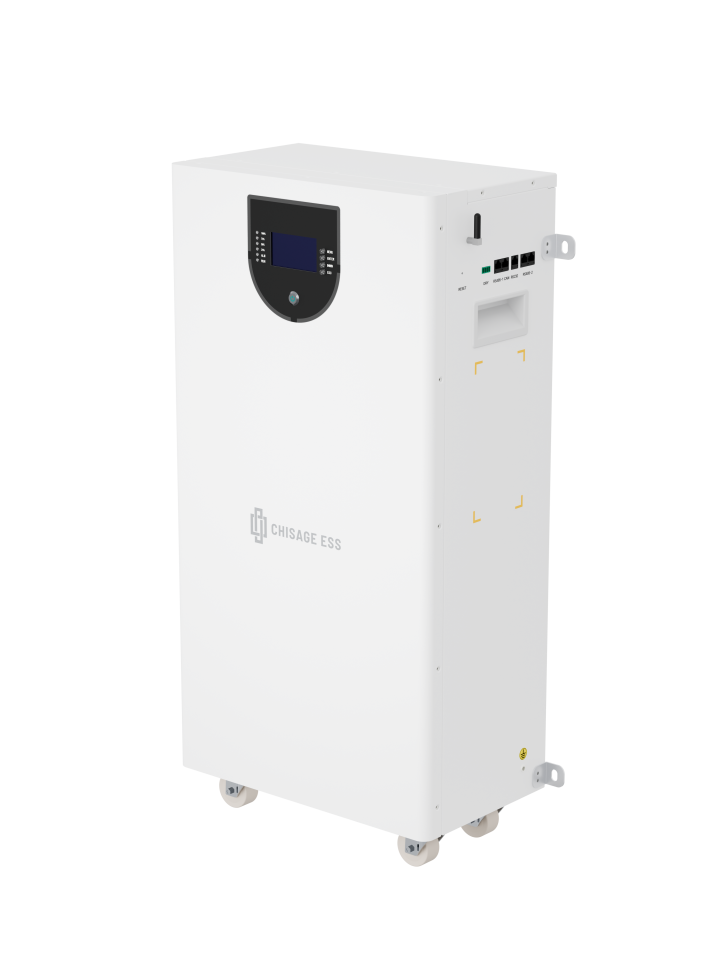

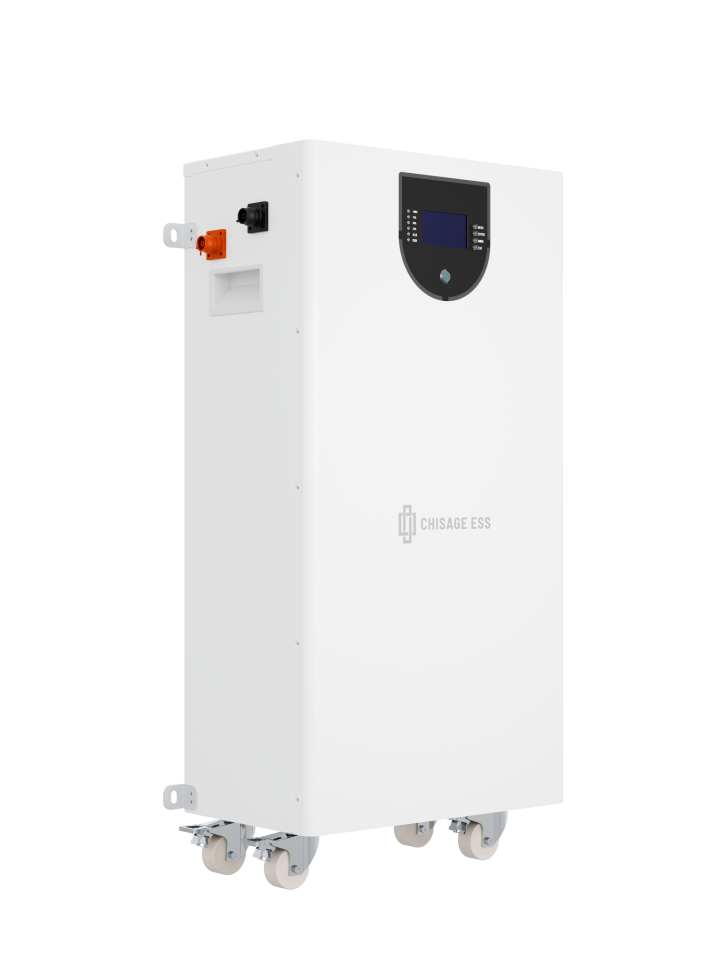

The kit includes 3 × CHISAGE MOON16 LiFePO4 batteries, each with a nominal energy capacity of 16.08kWh. The combined nominal capacity of the three batteries is 48.24kWh, commercially presented as a 48kWh-class battery storage system.

• Number of batteries: 3
• Model: MOON16
• Battery type: LiFePO4
• Energy per battery: 16.08kWh
• Total energy capacity: 48.24kWh
• Nominal voltage: 51.2V
• Capacity per battery: 314Ah
• Cells: EVE LiFePO4
• BMS: Yes
• Cycle life: 6000+ cycles
• Installation: Floor / wall mounted

How Does the 30kW Three-Phase System Work?

The three 10kW single-phase hybrid inverters are connected to the three phases of the electrical system and configured for coordinated three-phase operation. This creates one integrated system with a total nominal inverter power of 30kW.

Each inverter operates with its corresponding battery module, while the three batteries provide a combined 48.24kWh energy storage capacity. This configuration allows solar energy generated by the PV panels to be stored and used later during periods of lower solar production or higher energy demand.

Suitable for Large Solar and Energy Storage Systems

The 30kW + 48kWh system is suitable for applications with high electricity consumption where three-phase power and substantial battery storage are required. Potential applications include commercial buildings, production facilities, warehouses, agricultural sites, large residential properties and other energy-intensive installations.

The combination of 30kW hybrid inverter power and 48.24kWh LiFePO4 battery storage enables increased solar self-consumption and provides a large energy reserve for periods when photovoltaic production is reduced.

Additional Components Required

The kit includes 3 × JUP-10G2-LE 10kW hybrid inverters and 3 × MOON16 16.08kWh LiFePO4 batteries. A complete photovoltaic installation additionally requires suitable solar panels, mounting structure and fasteners, DC and AC cables, protection devices, distribution equipment and other components according to the specific project.

Solar panels, mounting structure and fasteners are not included in this kit. The required number of PV panels should be determined according to the desired PV capacity, inverter specifications, roof type, orientation, inclination and specific site conditions.

Key Advantages

• 30kW total hybrid inverter power
• Three-phase configuration using 3 × 10kW inverters
• 48.24kWh total LiFePO4 battery capacity
• 3 × 16.08kWh MOON16 batteries
• 3 × CHISAGE JUP-10G2-LE hybrid inverters
• 6000+ battery cycle life
• 2 MPPT trackers per inverter
• Backup power capability
• On-grid and off-grid functionality
• CAN / RS485 communication
• Suitable for residential, commercial and industrial applications

The 30kW + 48kWh CHISAGE system combines three 10kW hybrid inverters and three 16.08kWh LiFePO4 batteries into one powerful three-phase photovoltaic energy storage solution. With 30kW total inverter power and 48.24kWh battery capacity, the kit provides a solid foundation for large solar systems with integrated energy storage.
