2.4kWh 24V 100Ah LiFePO4 Battery Rack LVFU
Price excl. tax:
€400.00
Price inc. tax:
€480.00
-
Code:LFR24100
-
Weight:29.000 Kgs
Quick Buy
Just 2 fields to fill in

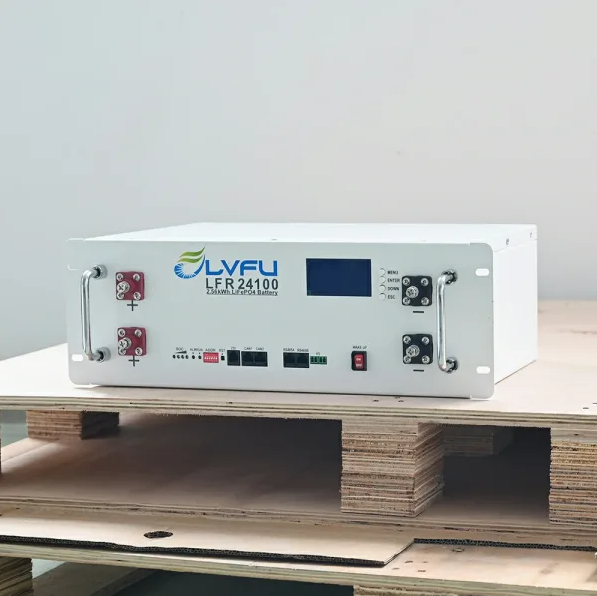

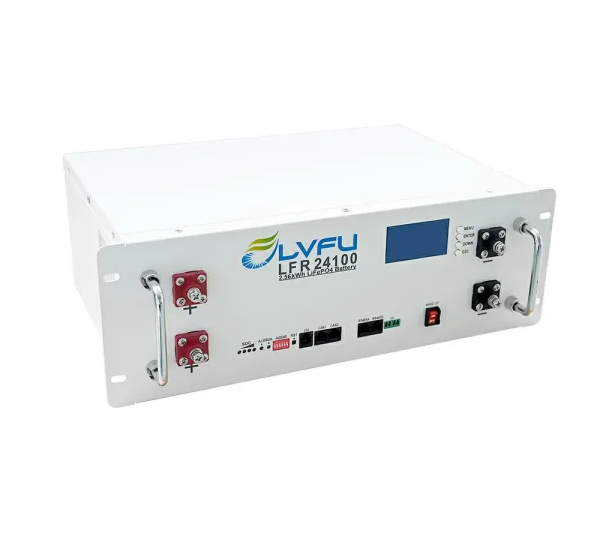

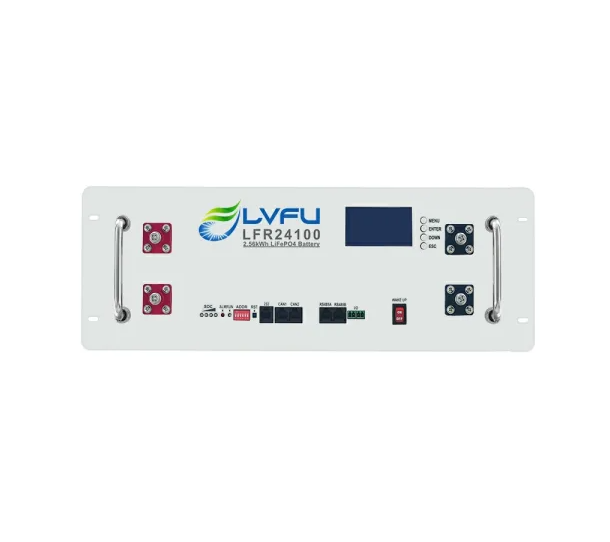

2.56kWh LiFePO4 SOLAR BATTERY LFR24100 25.6V 100Ah 6000 Cycles
General Information:
The LFR24100 battery is built with high-quality Grade-A LiFePO4 cells and an integrated BMS for maximum safety and efficiency. Ideal for solar systems, UPS, and off-grid applications.
Features:
- Nominal Voltage: 25.6V DC
- High Efficiency: Up to 98% at 0.5C
- Communication: CAN / RS485 / RS232
- Long Cycle Life: 6000+ cycles at 80% DoD
- BMS Protection: Overcharge, over-discharge, short circuit, overheating

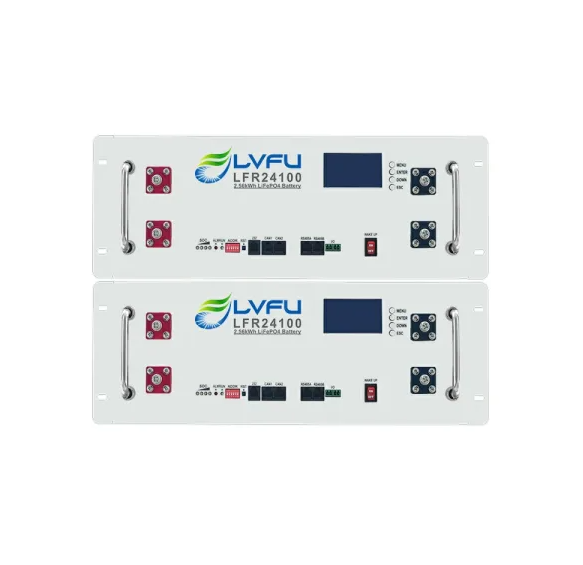

- Scalability: Supports parallel connection
- Compact Design: Suitable for rack/cabinet installation
Certifications:
- CE, FCC, MSDS
- UN38.3 / UN3480 Class 9

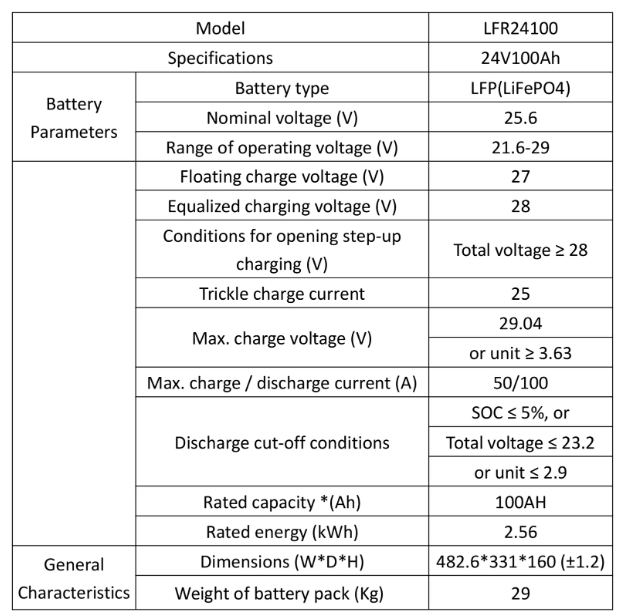

Technical Specifications:
- Capacity: 100Ah
- Energy: 2.56kWh
- Operating Voltage: 20V – 29.2V
- Recommended Charge Current: 50A
- Max Charge Current: 100A
- Max Discharge Current: 100A
- Self-discharge: <5% per month
- Design Life: 8–10 years
Mechanical Specifications:
- Dimensions: 483 x 170 x 240 mm
- Weight: ~25 kg
- Mounting: Rack / Cabinet
- Protection Level: IP20
A perfect solution for small and medium solar systems, providing reliable energy storage with long lifespan.
-
Warranty:5 years
-
IP Rating:20
-
Weight:29 kg.
