10kW Hybrid Inverter with 16.08kWh LiFePO4 Battery Kit with 12-Year Warranty

The CHISAGE 10kW hybrid solar kit combines the powerful JUP-10G2-LE hybrid inverter with a high-capacity 16.08kWh MOON16-GPro LiFePO4 battery. The solution is designed for residential and commercial photovoltaic systems requiring efficient solar energy management and battery storage.

The kit includes a 10kW single-phase hybrid inverter and a 16.08kWh LiFePO4 battery with high-quality EVE cells, 51.2V nominal voltage, 314Ah capacity and intelligent CN BMS. The inverter supports up to 15kW PV input power, two MPPT trackers and CAN/RS485 battery communication.

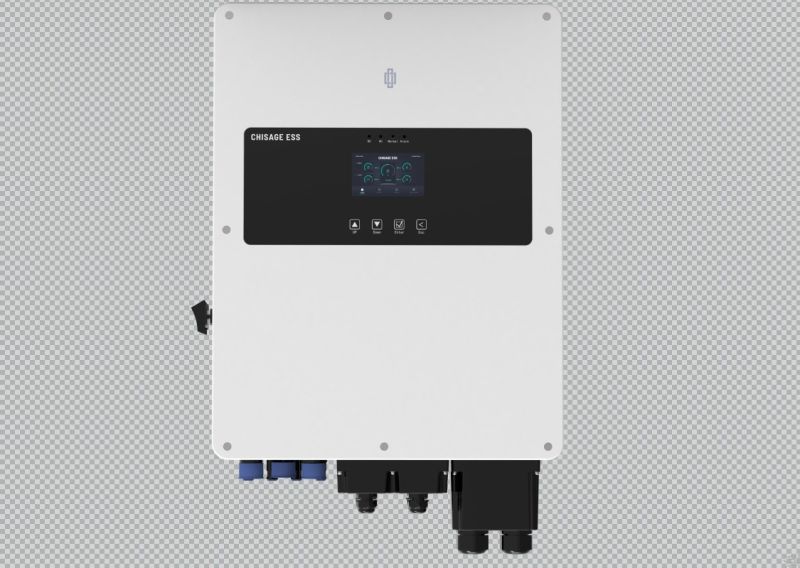

10kW CHISAGE JUP-10G2-LE Hybrid Inverter

The JUP-10G2-LE is a single-phase hybrid inverter with a rated AC output power of 10kW, designed for photovoltaic systems with battery energy storage. It can manage solar energy for direct consumption, battery charging and backup power applications.

• Rated AC output power: 10kW
• Maximum PV input power: 15kW
• PV voltage: 150–425V MPPT range
• MPPT trackers: 2
• Maximum PV current: up to 34A + 34A
• AC output: 230V, single phase
• Frequency: 50/60Hz
• Maximum efficiency: up to 97.9%
• Battery communication: CAN / RS485
• Protection rating: IP65
• Installation: wall-mounted
• EPS backup output: yes
• On-grid / off-grid operation: yes

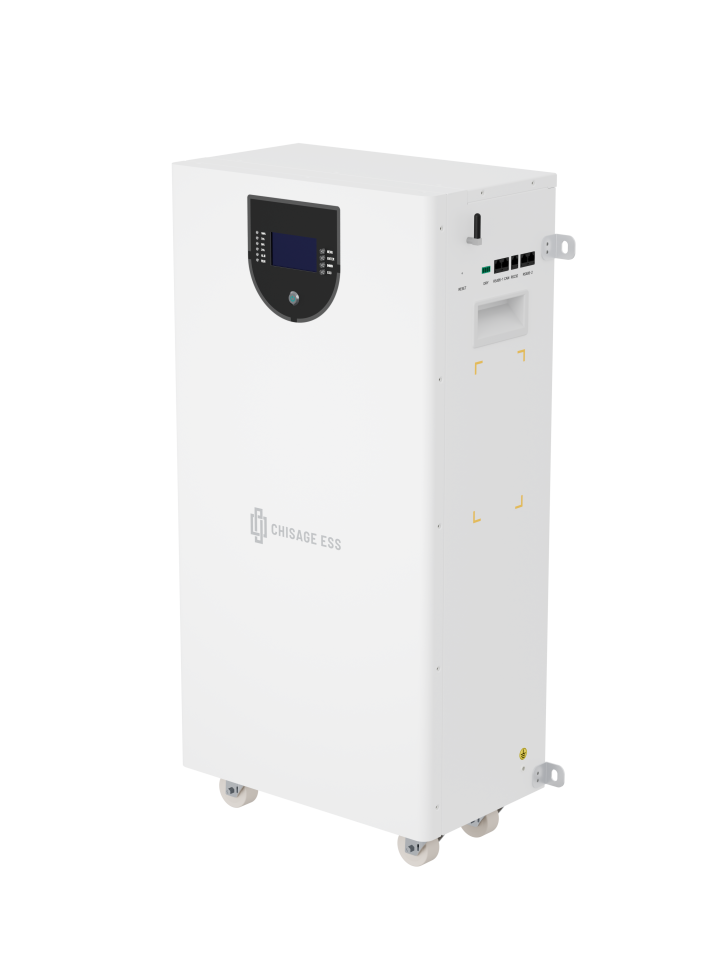

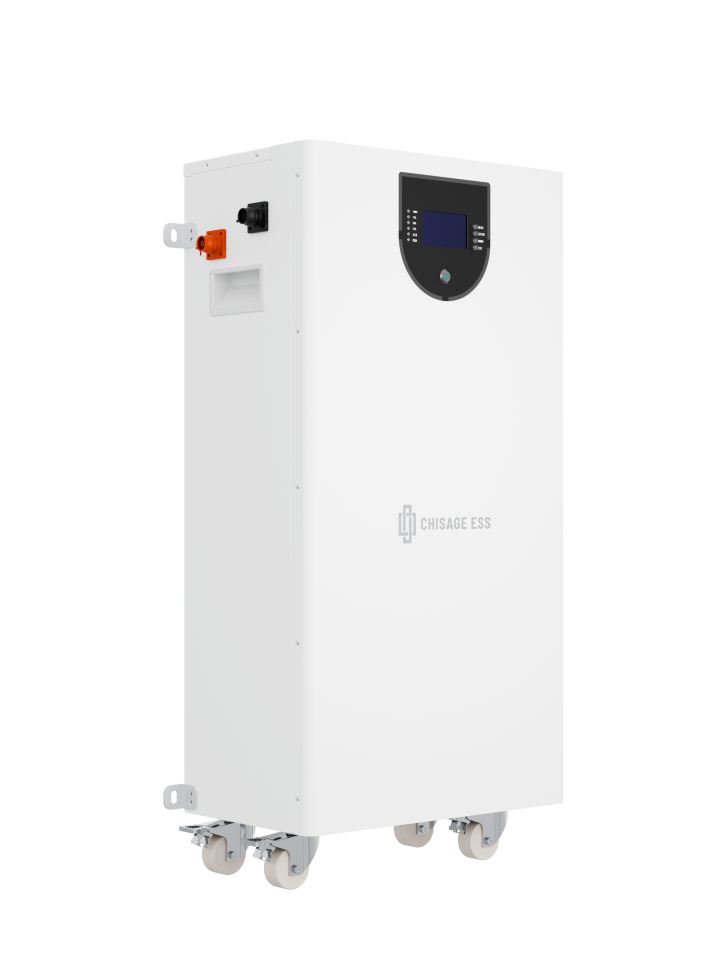

16.08kWh CHISAGE MOON16-GPro LiFePO4 Battery

The MOON16-GPro is a high-capacity 16.08kWh LiFePO4 battery designed for photovoltaic energy storage, UPS systems and off-grid applications. It uses high-quality EVE LiFePO4 cells combined with an intelligent CN BMS for battery monitoring, management and protection.

• Energy capacity: 16.08kWh
• Nominal voltage: 51.2V DC
• Capacity: 314Ah
• Cell type: EVE LiFePO4
• BMS: CN BMS
• Cycle life: 6000+ cycles
• Operating voltage: 43.2–58.4V
• Maximum charging voltage: 58.4V
• Charging temperature: 0°C to 55°C
• Discharging temperature: -20°C to 60°C
• Installation: floor or wall mounted

Solar Energy Storage Kit for Residential and Commercial Systems

The combination of a 10kW hybrid inverter and a 16.08kWh LiFePO4 battery provides a practical solution for increasing self-consumption of solar energy. During periods of solar production, the photovoltaic panels can supply electrical loads while charging the battery. Stored energy can then be used when solar production is lower or during the night.

The inverter features two MPPT trackers, allowing flexible photovoltaic system design with different PV strings and orientations. The system also supports backup operation, making the kit suitable for applications where selected electrical loads need to remain powered during a grid outage.

What is Required for a Complete Solar System?

The kit includes the CHISAGE JUP-10G2-LE 10kW hybrid inverter and CHISAGE MOON16-GPro 16.08kWh LiFePO4 battery. A complete photovoltaic system also requires suitable solar panels, mounting structure and fasteners, as well as appropriate DC and AC protection devices, cables and other system components according to the specific installation.

Solar panels and mounting hardware are not included in this kit. The number and configuration of PV panels should be selected according to the required PV capacity, roof type, orientation, inclination and installation conditions.

Key Advantages

• 10kW single-phase hybrid inverter
• 16.08kWh LiFePO4 battery storage
• High-quality EVE LiFePO4 cells
• Intelligent CN BMS
• 6000+ cycle life
• Up to 15kW PV input power
• 2 MPPT trackers
• On-grid and off-grid functionality
• EPS backup power
• IP65 inverter protection
• Floor or wall-mounted battery installation
• Suitable for residential and commercial solar systems

The CHISAGE 10kW + 16.08kWh solar storage kit provides a solid foundation for a photovoltaic system with battery energy storage. It combines a powerful hybrid inverter with a high-capacity LiFePO4 battery while allowing the appropriate solar panels, mounting system and additional components to be selected according to the individual project.

Inverter warranty: 12 years.
